TQM6M9014

Product Summary

The tqm6m9014 is a GPS LNA-Filter Receive Module. It is designed for simultaneous GPS + voice in multi-function handset. The FEM is comprised of a low-power flip-chip LNA die, a pair of high-performance SAW filters, and integrated passive matching circuitry. The module will operate at 1.8v or 2.8v bias and its current consumption – typically 5.0 mA – is not changed by DC supply, making it suitable for use in lowpower applications & during low-battery situations. The FEM performance exhibits high in-band gain and excellent rejection in all the key cellular & WLAN/Bluetooth bands. The device also exhibits both a high intercept point & a low noise figure, which optimally addresses today’s most stringent GPS front end receiver requirements. It is ideal for: (1)1575.42 MHz, L1 band GPS applications; (2)Personal Navigation Devices; (3)Cellular Handsets: Simultaneous GPS + voice calls.

Parametrics

tqm6m9014 absolute maximum ratings: (1)Vdd, Power Supply Voltage, no RF Applied: -0.5 to +5.0 VDC; (2)VCTRL Bias reference voltages (Vdd)and bias control voltage (VCTRL): -0.5 to +5.0 VDC; (3)PDISS Power Dissipation: 50 mW; (4)TC Case Temperature, Survival: -30 to +85 °C; (5)TSTG Storage Temperature: -55 to +125 °C; (6)RFIN DC Grounded RF input, 50ohm RF impedance: +10 VDC; (7)RFOUT DC Blocked RF output, 50 ohm RF impedance: +10 VDC; (8)RFIN CW RF input power at GPS in band: +5 dBm; (9)ESD (all pins)Human Body Model: 500 V.

Features

tqm6m9014 features: (1)Low noise figure & high associated gain for high IP3 receiver stages for 1575 MHz; (2)NF = 1.56 dB; Gain=16 dB @ 1.8V; (3)No external matching components required; (4)Low current consumption & low voltage operation; (5)High immunity against inband compression due to out-of-band interferers during simultaneous GPS + voice operation; (6)Input and output internally pre-matched to 50 Ω; (7)Low cost miniature package 3 x 3 x 1.0 mm; suitable for low profile handset; (8)applications; (9)Power-up control for the LNA; (10)Designed to operate at 1.8V, with enhanced linearity performance at 2.8V; (11)Halogen-free.

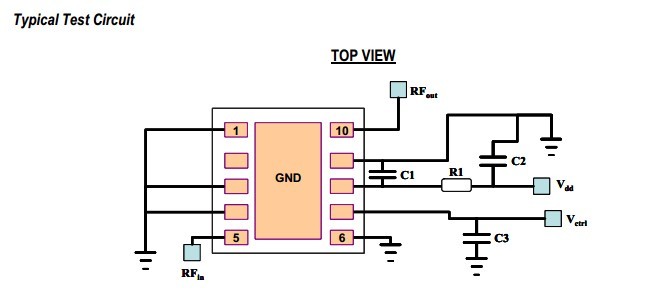

Diagrams
