Product Summary

The tqp7m9103 is a high linearity driver amplifier in industry standard, RoHS compliant, SOT-89 surface mount package. This InGaP/GaAs HBT delivers high performance across a broad range of frequencies while achieving +45 dBm OIP3 and +29.5 dBm P1dB while only consuming 235 mA quiescent current. All devices are 100% RF and DC tested. It is ideal for: (1)Repeaters; (2)BTS Transceivers; (3)BTS High Power Amplifiers; (4)CDMA / WCDMA / LTE; (5)General Purpose Wireless.



Parametrics

tqp7m9103 absolute maximum ratings: (1)Storage Temperature: -65 to +150°C; (2)Device Voltage, Vcc: +8 V; (3)Maximum Input Power, CW: +30 dBm.

Features

tqp7m9103 features: (1)400-4000 MHz; (2)+29.5 dBm P1dB; (3)+45 dBm Output IP3; (4)16.5 dB Gain @ 2140 MHz; (5)+5V Single Supply, 235 mA Current; (6)Internal RF overdrive protection; (7)Internal DC overvoltage protection; (8)On chip ESD protection; (9)SOT-89 Package.

Diagrams

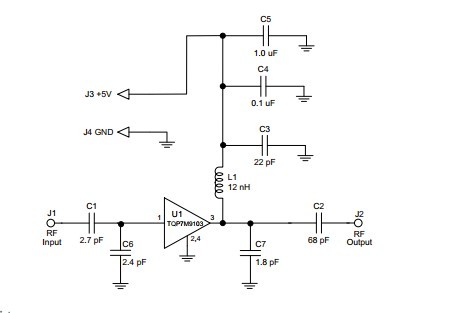

tqp7m9103 pin connection
