TSL1401R-LF

TSL1401R-LF, linear sensor array, 6 V, 25 mA, 8 MHz, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: TSL1401R-LF

Brand:: TEXAS ADVANCED OPTOELECTRONIC SOLUTIONS - TAOS | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:TSL1401R-LF
US $2.20 - 2.50
Quantity:

piece

Product Summary

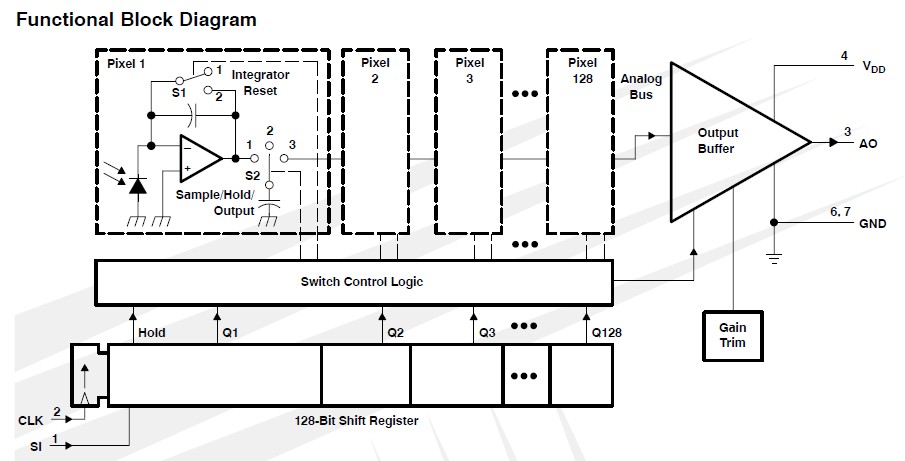

The TSL1401R-LF is a linear sensor array. The TSL1401R-LF consists of a 128 × 1 array of photodiodes, associated charge amplifier circuitry, and an internal pixel data-hold function that provides simultaneous-integration start and stop times for all pixels. The pixels measure 63.5 μm (H) by 55.5 μm (W) with 63.5-μm center-to-center spacing and 8-μm spacing between pixels. Operation is simplified by internal control logic that requires only a serial-input (SI) signal and a clock.

Parametrics

TSL1401R-LF absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 6 V; (2)Input voltage range, VI: -0.3 V to VDD + 0.3V; (3)Input clamp current, IIK (VI < 0)or (VI > VDD): -20 mA to 20 mA; (4)Output clamp current, IOK (VO < 0 or VO > VDD): -25 mA to 25 mA; (5)Voltage range applied to any output in the high impedance or power-off state, VO: -0.3 V to VDD + 0.3 V; (6)Continuous output current, IO (VO = 0 to VDD): -25 mA to 25 mA; (7)Continuous current through, VDD or GND: -40 mA to 40 mA; (8)Analog output current range, IO: -25 mA to 25 mA; (9)Maximum light exposure at 638 nm: 5 mJ/cm2; (10)Operating free-air temperature range, TA: -25°C to 85°C; (11)Storage temperature range, Tstg: -25°C to 85°C; (12)Lead temperature 1,6 mm (1/16 inch)from case for 10 seconds: 260°C; (13)ESD tolerance, human body model: 2000 V.

Features

TSL1401R-LF features: (1)128 × 1 sensor-element organization; (2)400 dots-per-inch (DPI)sensor pitch; (3)High linearity and uniformity; (4)Wide dynamic range: 4000: 1 (72 dB); (5)Output referenced to ground; (6)Low image lag: 0.5% typ; (7)Operation to 8 MHz; (8)Single 3-V to 5-V supply; (9)Rail-to-rail output swing (AO); (10)No external load resistor required; (11)Replacement for TSL1401 and TSL1401R; (12)RoHS compliant.
