Product Summary

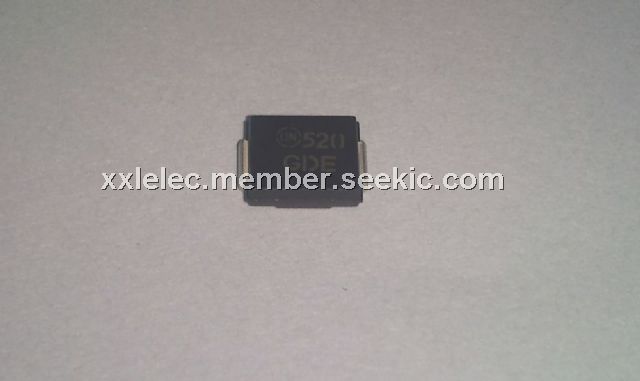

The 1SMC5.0AT3G is a 1500 Watt Peak Power Zener Transient Voltage Suppressor. The 1SMC5.0AT3G is designed to protect voltage sensitive components from high voltage, high energy transients. The device has excellent clamping capability, high surge capability, low zener impedance and fast response time. The 1SMC5.0AT3G is supplied in ON Semiconductor’s exclusive, cost-effective, highly reliable Surmetic package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
Parametrics
1SMC5.0AT3G absolute maximum ratings: (1)Peak Power Dissipation (Note 1) @ TL = 25℃, Pulse Width = 1 ms, PPK: 1500 W; (2)DC Power Dissipation @ TL = 75℃, PD: 4.0W; Measured Zero Lead Length Derate Above 75℃, PD: 54.6mW/℃; Thermal Resistance from Junction-to-Lead, RθJL: 18.3℃/W; (3)DC Power Dissipation (Note 3) @ TA = 25℃, PD: 0.75W; Derate Above 25℃, PD: 6.1mW/℃; Thermal Resistance from Junction-to-Ambient, RθJL: 165℃/W; (4)Forward Surge Current @ TA = 25℃, IFSM: 200 A; (5)Operating and Storage Temperature Range, TJ, Tstg: -65 to +150℃.
Features
1SMC5.0AT3G features: (1)Working Peak Reverse Voltage Range - 5.0 V to 78 V; (2)Standard Zener Breakdown Voltage Range - 6.7 V to 91.25 V; (3)Peak Power - 1500 W @ 1 ms; (4)ESD Rating of Class 3 (>16 KV) per Human Body Model; (5)Maximum Clamp Voltage @ Peak Pulse Current; (6)Low Leakage < 5 μA Above 10 V; (7)UL 497B for Isolated Loop Circuit Protection; (8)Maximum Temperature Coefficient Specified; (9)Response Time is Typically < 1 ns; (10)Pb-Free Packages are Available.
