Product Summary
The 30cpf06 is a fast soft recovery rectifier diode. It has been optimized for combined short reverse recovery time and low forward voltage drop. The glass passivation ensures stable reliable operation in the most severe temperature and power cycling conditions. The applications of the are Output rectification and freewheeling in inverters, choppers and converters and input rectifications where severe restrictions on conducted EMI should be met.
Parametrics
30cpf06 absolute maximum ratings: (1)IF(AV)Sinusoidal waveform: 30 A; (2)VRRM: 200 to 600 V; (3)IFSM: 350 A; (4)VF @ 10 A, TJ = 25°C: 1.2 V; (5)trr @ 1A, 100A/µs: 60 ns; (6)TJ: - 40 to 150 °C.
Features
30cpf06 features: (1)VF < 1.2V @ 10A; (2)trr = 60ns; (3)VRRM 200 to 600V.

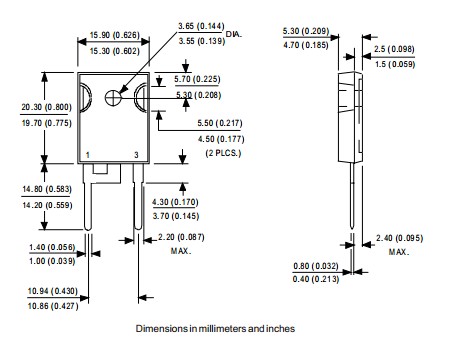

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 30CPF06 |
Vishay Semiconductors |
Rectifiers 600 Volt 30 Amp |
Data Sheet |
Negotiable |
|
||||
|
30CPF06PBF |
|
DIODE FAST REC 600V 30A TO247AC |
Data Sheet |
Negotiable |
|
||||
