Product Summary

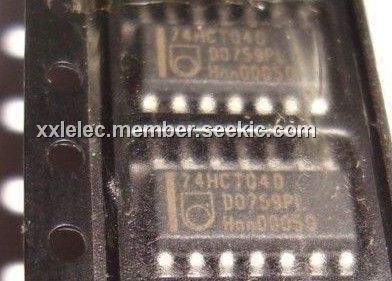

The 74HCT04D is a Hex inverter. The 74HCT04D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The device provides six inverting buffers.
Parametrics
74HCT04D absolute maximum ratings: (1)supply voltage, VCC: -0.5 to +7.0 V; (2)input diode current, VI < -0.5 V or VI > VCC + 0.5 V, IIK: ±20mA; (3)output diode current, VO < -0.5 V or VO > VCC + 0.5 V, IOK: ±20mA; (4)output source or sink current, -0.5 V < VO < VCC + 0.5 V, IO: ±25 mA; (5)VCC or GND current, ICC, IGND: ±50 mA; (6)storage temperature, Tstg: -65 to +150℃; (7)power dissipation, DIP14 package Tamb = -40 to +125℃, Ptot: 750 mW; other packages Tamb = -40 to +125℃, Ptot: 500 mW.
Features
74HCT04D features: (1)Complies with JEDEC standard no. 8-1A; (2)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; (3)Specified from -40 to +85℃ and -40 to +125℃.

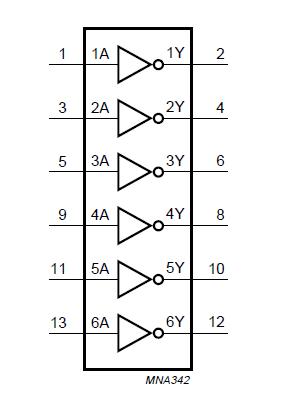

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HCT04D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HCT04D,652 |
NXP Semiconductors |
Inverters HEX INV LSTTL COMPAT |
Data Sheet |
|
|
||||||||||||
|
74HCT04D,653 |
NXP Semiconductors |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
|
74HCT04DB,118 |
NXP Semiconductors |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
|
74HCT04DB,112 |
NXP Semiconductors |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
|
74HCT04DB |
NXP Semiconductors |
Inverters HEX INVERTER |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HCT04DTR2G |
ON Semiconductor |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
 |
74HCT04DR2G |
ON Semiconductor |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
