Product Summary

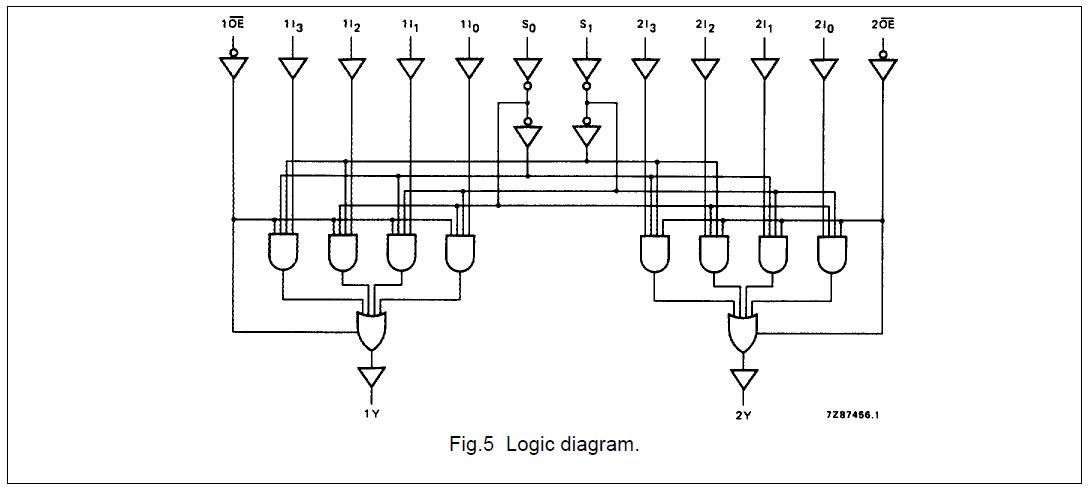

The 74HC253D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC253D has two identical 4-input multiplexers with 3-state outputs which select two bits from four sources selected by common data select inputs (S0, S1). When the individual output enable (1OE, 2OE) inputs of the 4-input multiplexers are HIGH, the outputs are forced to the high impedance OFF-state. The "253" is the logic implementation of a 2-pole, 4-position switch, where the position of the switch is determined by the logic levels applied to S0 and S1. The applications of the 74HC253D include Data selectors, Data multiplexers.

Parametrics

74HC253D absolute maximum ratings: (1)supply voltage: -0.5 +7.0 V; (2)input clamping current: ±20 mA at VI < -0.5 V or VI > VCC +0.5 V; (3)output clamping current: ±50 mA at VO < -0.5 V or VO > VCC +0.5 V; (4)output current: ±35 mA at -0.5 V < VO < VCC +0.5 V; (5)supply current: 70 mA; (6)ground current: -70 mA; (7)storage temperature: -65 to +150 ℃.

Features

74HC253D features: (1)Non-inverting data path; (2)3-state outputs for bus interface; (3)and multiplex expansion; (4)Common select inputs; (5)Separate output enable inputs; (6)Output capability: bus driver; (7)ICC category: MSI.
