Product Summary

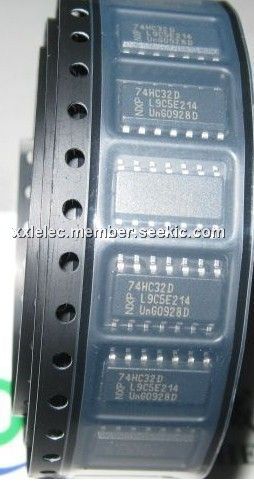

The 74HC32D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A.

Parametrics

74HC32D absolute maximum ratings: (1)supply voltage: -0.5 to +7.0 V; (2)input diode current: ±20 mA at VI < -0.5 V or VI > VCC +0.5 V; (3)output diode current: ±20 mA at VO < -0.5 V or VO > VCC +0.5 V; (4)output source or sink current: ±25 mA at -0.5 V < VO < VCC +0.5 V; (5)VCC or GND current: ±50 mA; (6)storage temperature: -65 to +150℃; (7)power dissipation: 300 mW at Tamb = -40 to +125 ℃.

Features

74HC32D features: (1)Wide supply voltage range from 2.0 to 6.0 V; (2)Symmetrical output impedance; (3)High noise immunity; (4)Low power dissipation; (5)Balanced propagation delays; (6)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V.

Diagrams

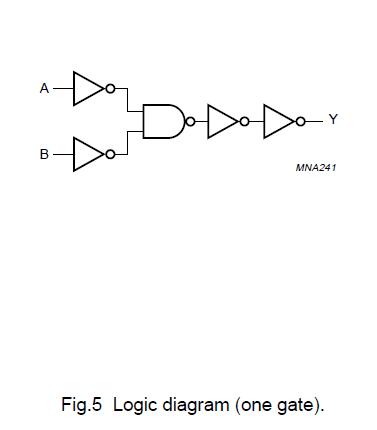

74HC32D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HC32D,652
74HC32D,652
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-IN OR GATE
Data Sheet
0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.04
74HC32D,653
74HC32D,653
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT OR GATE
Data Sheet
0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.04
74HC32DB,112
74HC32DB,112
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT OR GATE
Data Sheet
0-1: $0.13
1-25: $0.11
25-100: $0.11
100-250: $0.10
74HC32DB,118
74HC32DB,118
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT OR GATE
Data Sheet
0-1: $0.29
1-25: $0.25
25-100: $0.21
100-250: $0.19
74HC32DR2G
74HC32DR2G

IC GATE OR QUAD 2INPUT 14-SOIC
Data Sheet
0-1: $0.29
1-10: $0.21
10-25: $0.17
25-100: $0.14
100-250: $0.10
250-500: $0.08
500-1000: $0.06
74HC32DTR2G
74HC32DTR2G

IC GATE OR QUAD 2INPUT 14-TSSOP
Data Sheet
Negotiable
