Product Summary

The 7mbr10sa120-50 is an IGBT module(S series). It is widely used as inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply.

Parametrics

7mbr10sa120-50 absolute maximum ratings: (1)collector-emitter voltage vces: 1200 V; (2)gate-emitter voltage vges: 20 V; (3)collector current icp: 30 a; (4)Collector power dissipation pc: 75 W; (5)Collector-Emitter voltage VCES: 1200 V; (6)Gate-Emitter voltage VGES: 20 V; (7)Operating junction temperature Tj: 150 °C; (8)Storage temperature Tstg: -40 to +125°C.


Features

7mbr10sa120-50features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

Diagrams

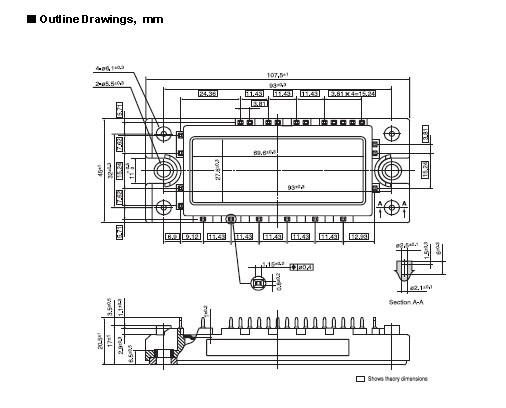

7mbr10sa120-50 pin connection
