Product Summary

The 7mbr15nf120-01 is a IGBT MODULE. The applications of the 7mbr15nf120-01 include Inverter for motor drive, AC and DC servo drive amplifer, Uninterruptible power supply.

Parametrics

7mbr15nf120-01 absolute maximum ratings: (1)VCES: 1200 V; (2)VGES: ±20 V; (3)DC, LC: 15 A; (4)LMS, IC pulse: 30 A; (5)DC-LC: 15 A; (6)ONE, PC: 120 W; (7)VRRM: 1200 V; (8)IFAV: 1 A; (9)IFSM: 50 A; (10)VRSM: 1700 V; (11)LO: 25 A; (12)TJ: +150 ℃; (13)TSTG: -40 to +125 ℃; (14)VISO: AC2500 V; (15)Mounting: 1.7 Nm.

Features

7mbr15nf120-01 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance moudle structure; (4)Converter diode bridge dynamic brake circuit.

Diagrams

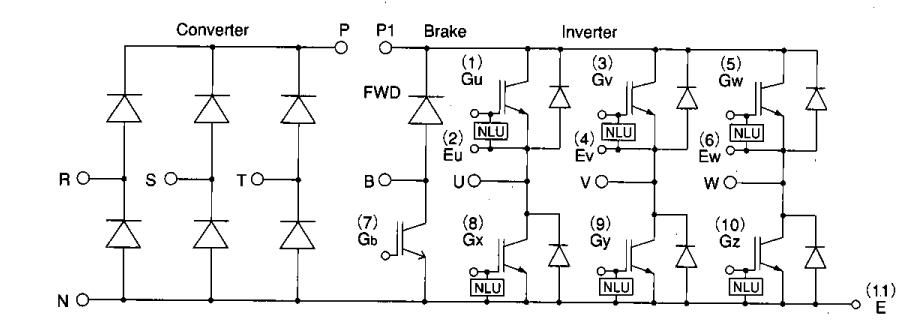

7mbr15nf120-01 block diagram
