Product Summary
The AD976BRSZ is a high speed, low power 16-bit A/D converter that operates from a single 5 V supply. The AD976BRSZ contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference and a high speed parallel interface. The ADC is factory calibrated to minimize all linearity errors. The AD976BRSZ is available in skinny 28-lead DIP, SSOP and SOIC packages.
Parametrics
AD976BRSZ absolute maximum ratings: (1)VIN: ±25 V; (2)CAP: +VANA + 0.3 V to AGND2 0.3 V; (3)DGND, AGND1, AGND: ±0.3 V; (4)VANA: 7 V; (5)VDIG to VANA: ±7 V; (6)VDIG: 7 V; (7)Digital Inputs: –0.3 V to VDIG + 0.3 V; (8)PDIP (N), SOIC (R), SSOP (RS): 700 mW; (9)Junction Temperature: +150°C; (10)Storage Temperature Range (N, R, RS): –65°C to +150°C; (11)Lead Temperature Range (Soldering 10 sec): +300°C.
Features
AD976BRSZ features: (1)200 kSPS Throughput – AD976A; (2)100 kSPS Throughput – AD976; (3)Single 5 V Supply Operation; (4)Input Range: 610 V; (5)100 mW Max Power Dissipation; (6)Choice of External or Internal 2.5 V Reference; (7)High Speed Parallel Interface; (8)On-Chip Clock; (9)28-Lead Skinny DIP, SSOP or SOIC Packages.

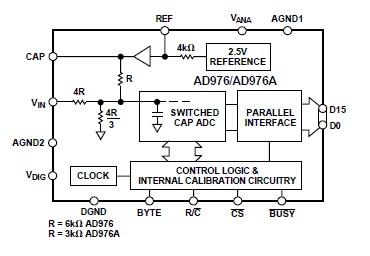

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD976BRSZ |
|
IC ADC 16BIT 100KSPS 28SSOP |
Data Sheet |
|
|
||||||
 |
AD976BRSZRL |
Analog Devices Inc |
IC ADC 16BIT 100KSPS 28SSOP |
Data Sheet |
|
|
||||||
 |
AD976BRSZ-RL7 |
|
IC ADC 16BIT 100KSPS 28SSOP |
Data Sheet |
|
|
||||||
