Product Summary
The ADS7841EB is a 4-channel, 12-bit sampling analogto- digital converter (ADC) with a synchronous serial interface. The ADS7841EB is programmable to either 8 or 12 bits. Typical power dissipation is 2mW at a 200kHz throughput rate and a +5V supply. Applications are (1)data acquisition; (2)test and measurement; (3)industrial process control; (4)personal digital assistants; (5)battery-powered systems.
Parametrics
ADS7841EB absolute maximum ratings: (1)+VCC to GND: –0.3V to +6V; (2)Analog Inputs to GND : –0.3V to +VCC + 0.3V; (3)Digital Inputs to GND : –0.3V to +6V; (4)Power Dissipation : 250mW; (5)Maximum Junction Temperature : +150°C; (6)Operating Temperature Range : –40°C to +85°C; (7)Storage Temperature Range : –65°C to +150°C; (8)Lead Temperature (soldering, 10s): +300°C.
Features
ADS7841EB features: (1)single supply: 2.7v to 5v; (2)4-channel single-ended or 2-channel differential input; (3)up to 200khz conversion rate; (4)±1 lsb max inl and dnl; (5)guaranteed no missing codes; (6)72db sinad; (7)serial interface; (8)16-pin pdip or 16-lead ssop package; (9)alternate source for max1247.

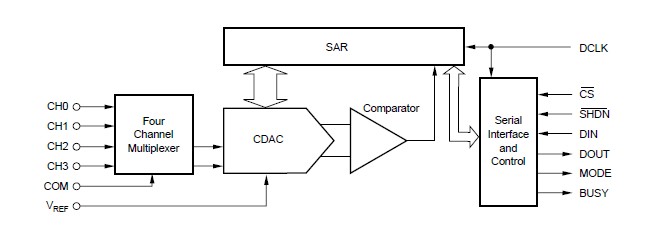

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7841EB |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841EB/2K5 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841EB/2K5G4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7841EBG4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 4-Ch Serial Output Sampling |
Data Sheet |
|
|
||||||||||||
