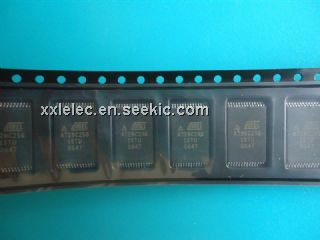

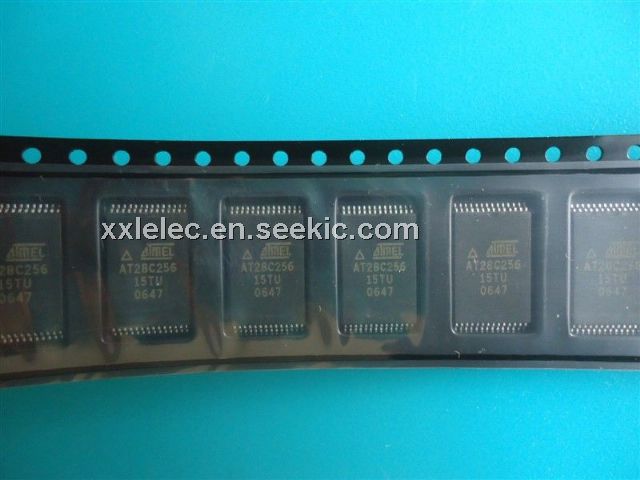

AT28C256-15TU

AT28C256-15TU, high-performance Electrically Erasable and Programmable Read Only Memory, 6.25V, 150 ns, 50 mA, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: AT28C256-15TU

Brand:: ATMEL Corporation - ATMEL | Pack: TSOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-08

From Other Seller

Part Number:AT28C256-15TU
US $3.00 - 5.00
Quantity:

piece

Product Summary

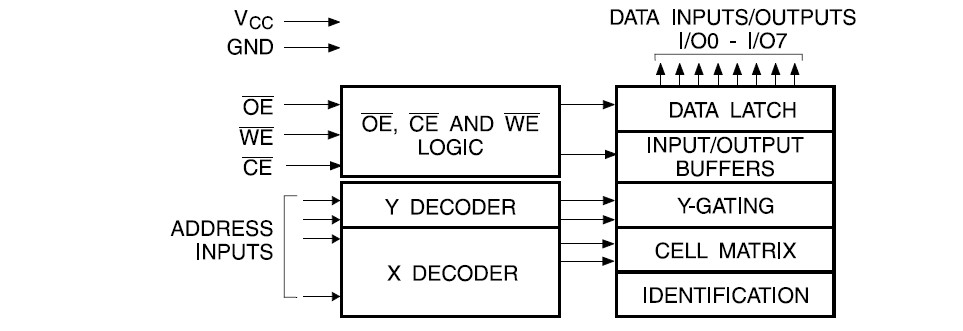

The AT28C256-15TU is a high-performance Electrically Erasable and Programmable Read Only Memory. Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmels advanced nonvolatile CMOS technology, the AT28C256-15TU offers access times to 150 ns with power dissipation of just 440 mW. When the AT28C256-15TU is deselected, the CMOS standby current is less than 200 μA.

Parametrics

AT28C256-15TU absolute maximum ratings: (1)Temperature Under Bias: -55°C to +125°C; (2)Storage Temperature: -65°C to +150°C; (3)All Input Voltages(including NC Pins)with Respect to Ground : -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground : -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground : -0.6V to +13.5V.

Features

AT28C256-15TU features: (1)Fast Read Access Time - 150 ns;; (2)Automatic Page Write Operation:Internal Address and Data Latches for 64-Bytes Internal Control Timer;; (3)Fast Write Cycle Times Page Write Cycle Time: 3 ms or 10 ms Maximum 1 to 64-Byte Page Write Operation;; (4)Low Power Dissipation:50 mA Active Current,200 μA CMOS Standby Current;; (5)Hardware and Software Data Protection;; (6)DATA Polling for End of Write Detection;; (7)High Reliability CMOS Technology,Endurance: 104 or 105 Cycles ,Data Retention: 10 Years;; (8)Single 5V ± 10% Supply;; (9)CMOS and TTL Compatible Inputs and Outputs;; (10)JEDEC Approved Byte-Wide Pinout;; (11)Full Military, Commercial, and Industrial Temperature Ranges.
