AT9173EG

AT9173EG, Bus Termination Regulator, DIP, 6V, 2A, Analog Microelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.20

PartNumber:: AT9173EG

Brand:: Analog Microelectronics - AME | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dannie's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-28

From Other Seller

Part Number:AT9173EG
US $0.20 - 0.20
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

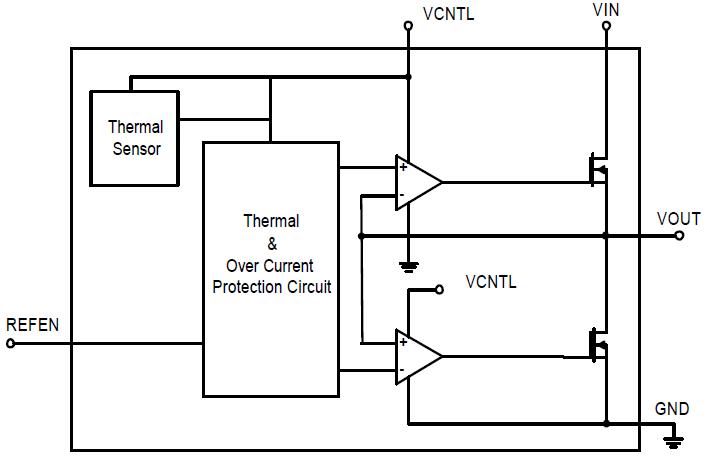

The AT9173EG is a voltage regulator which could convert the input voltage ranging from 1.8V to 5V to an output voltage that user settled. The regulator can provide sourcing or sinking current. The AT9173EG, used in conjunction with series termination resistors, provides an excellent voltage source for active termination schemes of high speed transmission lines as those seen in high speed memory buses and distributed backplane designs. The applications of the AT9173EG include DDRI/DDRII Memory Termination Supply, Active Termination Buses, Desktop PC,NoTebook,Server and workstation, Graphic Card, Set Top Box, Embedded System.

Parametrics

AT9173EG asbolute maximum ratings: (1)Input Voltage. VIN to GND, VIN: 6 V; (2)VCNTL to GND, VCNTL: 6 V; (3)ESD Rating (Human Body Mode), VESD: 2 KV; (4)Storage Temperature, TSTG: 150℃; (5)Lead Temperature (Soldering. 5sec), TL: 245℃.

Features

AT9173EG features: (1)Support Both DDR I (1.25VTT) and DDR II(0.9VTT) Requirements; (2)Capable of Sourcing and Sinking Current; (3)Current-limiting Protection; (4)Thermal Protection; (5)Integrated Power MOSFETs; (6)Generates Termination Voltages for SSTL-2; (7)High Accuracy Output Voltage at Full-Load; (8)Adjustable VOUT by External Resistors; (9)Minimum External Components; (10)Shutdown for Standby or Suspend Mode; (11)Operation with High-impedance Output.
