Product Summary
The ATF1500A-7JC is a high performance, high density Complex PLD. Built on an advanced Flash technology, it has maximum pin to pin delays of 7.5 ns and supports sequential logic operation at speeds up to 125 MHz. With 32 logic macrocells and up to 36 inputs, it easily integrates logic from several TTL, SSI, MSI and classic PLDs. The ATF1500A-7JC’s global input and feedback architecture simplifies logic placement and eliminates pinout changes due to design changes.
Parametrics
ATF1500A-7JC absolute maximum ratings: (1)Temperature Under Bias: -40℃ to +85℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (4)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (5)Programming Voltage with Respect to Ground: -2.0V to +14.0V.
Features
ATF1500A-7JC features: (1)High Density, High Performance Electrically Erasable Complex Programmable Logic Device; (2)Flexible Logic Macrocell D/T/Latch Configurable Flip Flops; (3)Advanced Power Management Features; (4)Available in Commercial and Industrial Temperature Ranges; (5)Available in 44-Pin PLCC and TQFP Packages; (6)Advanced Flash Technology, 100% Tested; Completely Reprogrammable; 100 Program/Erase Cycles; 20 Year Data Retention; 2000V ESD Protection; 200 mA Latch-Up Immunity; (7)Supported By Popular 3rd Party Tools; (8)Security Fuse Feature.

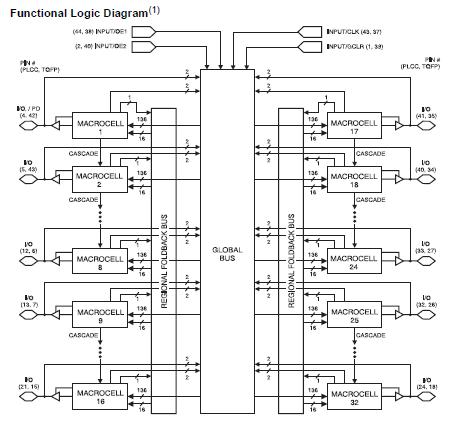

Diagrams
