Product Summary

The BC850AMTF is an NPN epitaxial silicon transistor.

Parametrics

BC850AMTF absolute maximum ratings: (1)VCBO Collector-Base Voltage: 50 V; (2)VCEO Collector-Emitter Voltage: 45 V; (3)VEBO Emitter-Base Voltage: 5 V; (4)IC Collector Current (DC): 100 mA; (5)PC Collector Power Dissipation: 310 mW; (6)TJ Junction Temperature: 150 °C; (7)TSTG Storage Temperature: -65 ~ 150 °C.

Features

BC850AMTF features: (1)Switching and Amplifier Applications; (2)Suitable for automatic insertion in thick and thin-film circuits; (3)Low Noise: BC849, BC850; (4)Complement to BC856 ... BC860.

Diagrams

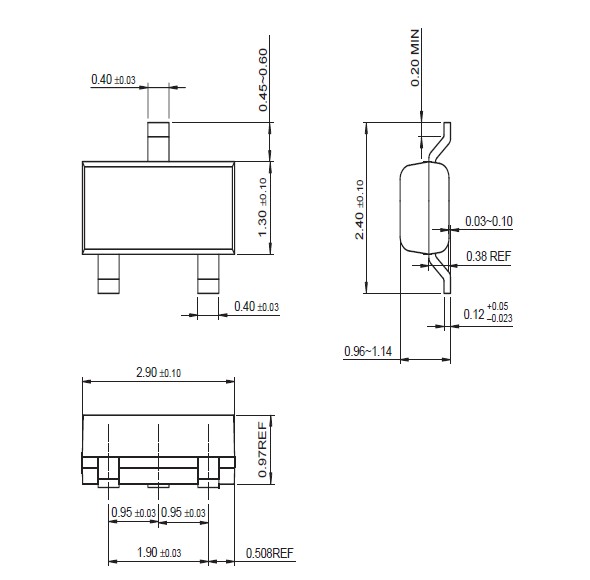

BC850AMTF dimension
