BCM5325EKQMG

BCM5325EKQMG, pin-compatible six-port switch, 3.3V, 1.0W, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~9.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	9.00 / Piece
501 ~ 1000 :	8.00 / Piece
1001 ~ 3000 :	7.00 / Piece

PartNumber:: BCM5325EKQMG

Brand:: Broadcom Corporation. - BC | Pack: QFP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-08

From Other Seller

Part Number:BCM5325EKQMG
US $7.00 - 9.00
Quantity:

piece

Product Summary

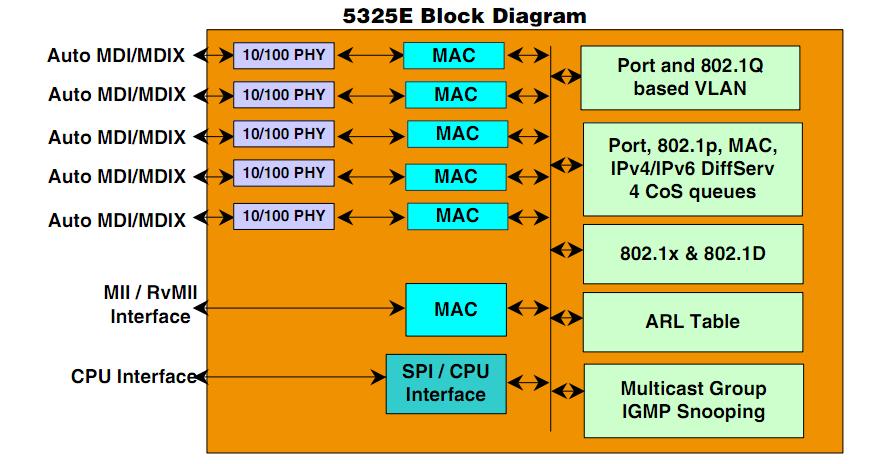

The BCM5325EKQMG is the feature-enhanced and pin-compatible six-port switch to the industry leader BCM5325EKQMG ROBOswitch. The BCM5325EKQMG combines all the functions of a high-speed switch system, including packet buffers, PHY transceivers, MACs, address management, and a non-blocking switch fabric, into a single 0.18-μm CMOS device. The BCM5325EKQMG complies with the IEEE 802.3, 802.3u, and 802.3x specifications, including the MAC control PAUSE frame and autonegotiation subsections, providing compatibility with all industrystandard Ethernet and Fast Ethernet devices.

Features

BCM5325EKQMG features: (1)Port-based and 802.1Q-based VLAN with 16 entries; (2)802.1d Spanning Tree; (3)Supports 802.1x EAPOL higher layer protocol; (4)Programmable storm control; (5)1K MAC addresses with automatic learning and aging; (6)Programmable per port flow control and back-pressure; (7)MII or reversed MII; (8)MDC/MDIO and SPI interfaces; (9)WAN port and protected port support; (10)Port mirroring and IGMP layer 3 snooping; (11)Internal oscillator simplifies design and reduces cost; (12)3.3V and 2.5V, power consumption is less than 1.0W; (13)BCM5325E/BCM5325U pin-to-pin compatible with BCM5325M/BCM5325 respectively; (14)128-pin MQFP package.
