Product Summary

The BCM5650KPBG is an integrated multi-layer switch. Applications are (1)High-density multi-layer scalable enterprise 10/100/1000 Mbps L2/L3 Ethernet switches; (2)Multi-tenant unit (MTU)Metro Ethernet VPN multi-layer switches; (3)Service Provider Metro Ethernet VPN Edge Switches.

Features

BCM5650KPBG features: (1)24 x 10/100 Mbits, 4 x 10/100/1000 Mbps Ethernet ports; (2)9.5 Mpps (line rate)aggregate L2/L3 switching capacity; (3)Integrated L2 table with auto learning/aging; (4)Integrated L3 table with longest prefix match; (5)Double 802.1Q (Q in Q)VLAN stacking; (6)MPLS Tunnel/VC packet labeling for L2 VPN; (7)Scalable to hundreds Fast/Gigabit Ethernet in a system; (8)8 Classes of Service (COS)with WRED and WRR, DSCP/ 802.1p priority; (9)Spanning trees (802.1s and 802.1w); (10)32 link aggregation trunk groups; ECMP/WCMP; mirroring; (11)IPMC groups and hardware packet replication; (12)Flow control (802.3x)and HOL blocking prevention; (13)64 data bit DDR SDRAM with up to 32 MB of buffer memory; (14)ContentAware network processing per port.

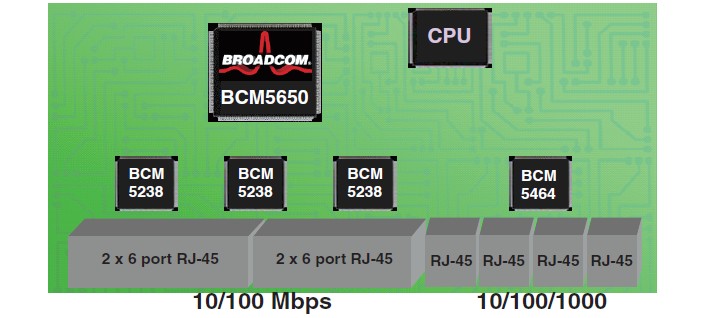

Diagrams

BCM5650KPBG pin connection
