Product Summary

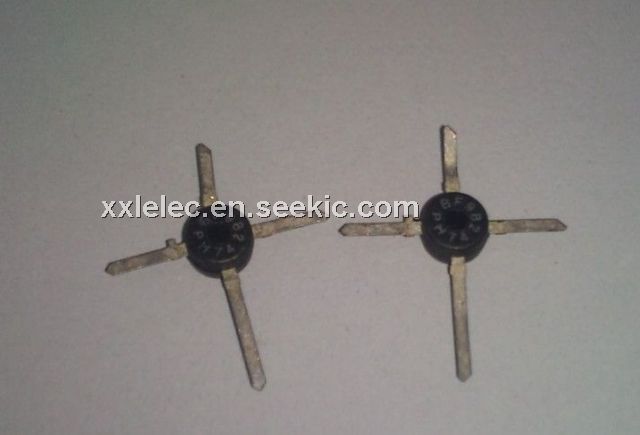

The BF98247 is a depletion type field-effect transistor in a plastic X-package with source and substrate interconnected, intended for VHF applications, such as VHF television tuners, FM tuners, with 12V supply voltage. The BF98247 tetrode is protected against excessive input voltage surges by integrated back-to-back diodes between gates and source.

Parametrics

BF98247 absolute maximum ratings: (1)Drain-source voltage, VDS: 20V; (2)Drain current, ID: 40mA; (3)Gate1-source current, ±IG1-S: 10mA; (4)Gate2-source current, ±IG2-S: 10mA; (5)Total power dissipation up to Tamb=75℃, Ptot: 225mW; (6)Storage temperature range, Tstg: -65 to 150℃; (7)Junction temperature, Tj: 150℃.

Features

BF98247 features: (1)Drain-source voltage, VDS: 20V; (2)Drain current, ID: 40mA; (3)Total power dissipation up to Tamb=75℃, Ptot: 225mW; (4)Junction temperature, Tj: 150℃; (5)Transfer admittance at f=1kHz, ID=15mA; VDS=10V; +VG2-S=4V, YFS: 25ms; (6)Input capacitance at gate 1: f=1MHz, ID=15mA; VDS=10V; +VG2-S=4V, CIG1-s: 4.0pF; (7)Feedback capacitance at f=1MHz, ID=15mA; VDS=10V; +VG2-S=4V, Crs: 30fF; (8)Noise figure at GS=2ms; BS = BSopt, ID=15mA; VDS=10V; +VG2-S=4V; f=200MHz, F: 1.2dB.

Diagrams

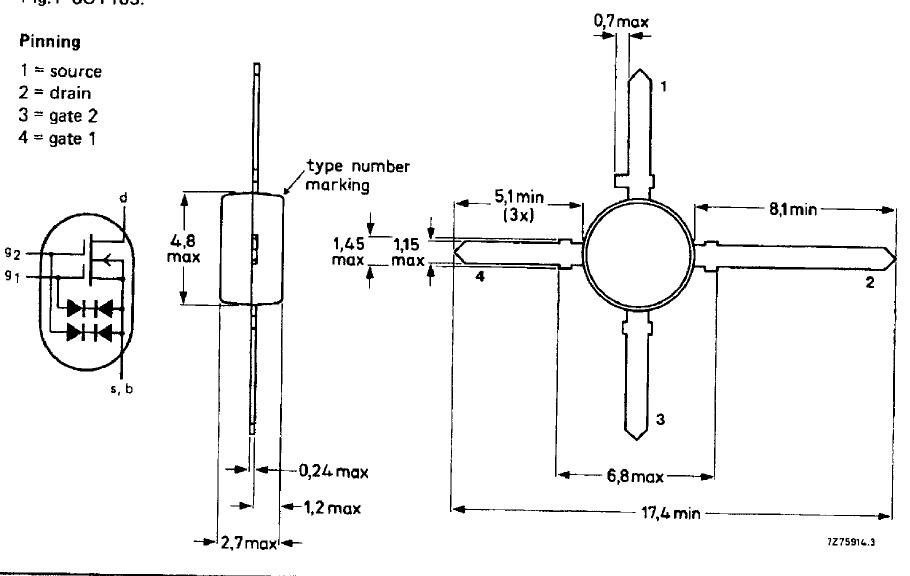

BF98247 block diagram
