Product Summary
The BT152-650R is a Silicon Controlled Rectifier. Standard gate triggering SCR is suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system.
Parametrics
BT152-650R absolute maximum ratings: (1)Repetitive Peak Off-State Voltage, VDRM: 600 V; (2)Average On-State Current, IT(AV): 12.7 A; (3)R.M.S On-State Current, IT(RMS): 20 A; (4)Surge On-State Current, ITSM: 220 A; (5)I2t for Fusing, I2t: 242 A2s; (6)Critical rate of rise of on-state current, di/dt: 50 A/μs; (7)Forward Peak Gate Power Dissipation, PGM: 20 W; (8)Forward Average Gate Power Dissipation, PG(AV): 0.5 W; (9)Forward Peak Gate Current, IFGM: 5 A; (10)Reverse Peak Gate Voltage, VRGM: 5 V; (11)Operating Junction Temperature, TJ: -40 to 125℃; (12)Storage Temperature, TSTG: -40 to 150℃.
Features
BT152-650R feratures: (1)Repetitive Peak Off-State Voltage: 600V; (2)R.M.S On-State Current ( IT(RMS)= 20 A ); (3)Low On-State Voltage (1.4V(Typ.)@ ITM); (4)Non-iosolated Type.

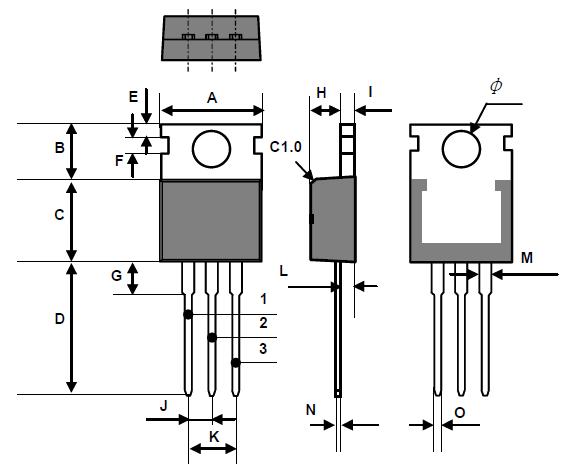

Diagrams
 |
