Product Summary

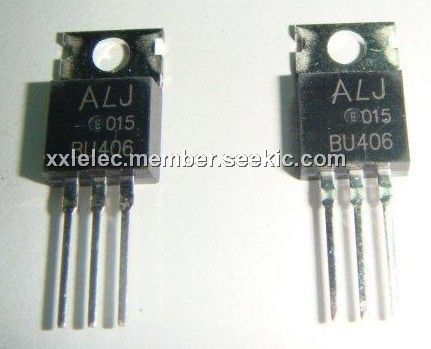

The BU406 is an NPN Epitaxial Silicon Transistor.

Parametrics

BU406 absolute maximum ratings: (1)VCBO, Collector-Base Voltage: 400 V; (2)VCEO, Collector-Emitter Voltage: 200 V; (3)VEBO, Emitter-Base Voltage: 6 V; (4)IC, Collector Current (DC): 7 A; (5)ICP, Collector Current (Pulse): 10 A; (6)IB, Base Current: 4 A; (7)PC, Collector Dissipation: 60 W; (8)TJ, Junction Temperature: 150℃; (9)TSTG, Storage Temperature: -55 to +150℃.

Features

BU406 feature: Use In Horizontal Deflection Output Stage.

Diagrams

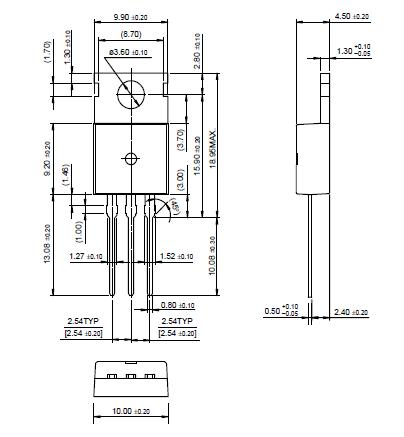

BU406 block diagram
