COM20020

COM20020, Controller, 0.3V, PLCC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: COM20020

Brand:: SMSC Corporation - SMSC | Pack: PLCC | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-02

From Other Seller

Part Number:COM20020
US $1.00 - 3.00
Quantity:

piece

Product Summary

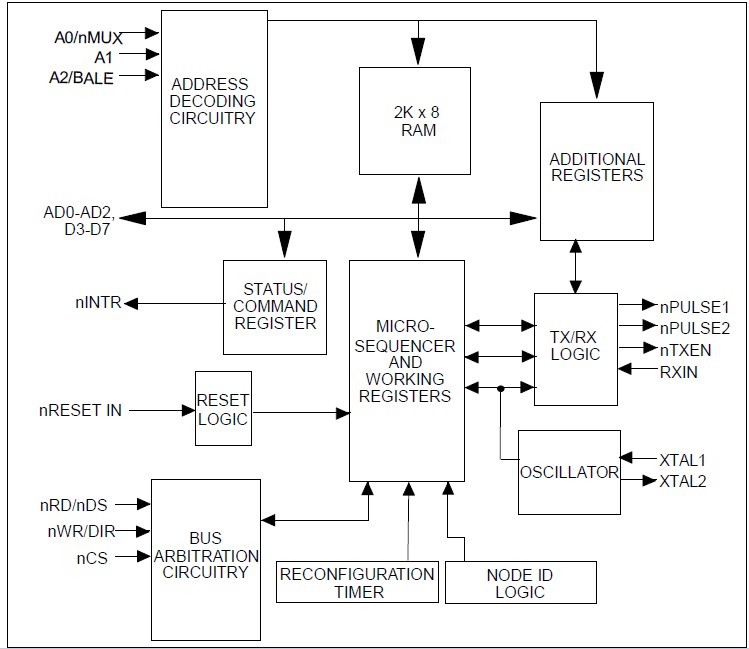

The COM20020 is a member of the family of Industrial Network Controllers from Standard Microsystems Corporation. The COM20020 is a special purpose communications controller for networking microcontrollers and intelligent peripherals in industrial, automotive, and embedded control environments using an ARCNET protocol engine.

Parametrics

COM20020 absolute maximum ratings: (1)Operating Temperature Range: 0oC to +70oC; (2)Storage Temperature Range: -55oC to +150oC; (3)Lead Temperature (soldering, 10 seconds): +325 oC; (4)Positive Voltage on any pin, with respect to ground: VDD+0.3V; (5)Negative Voltage on any pin, with respect to ground: -0.3V; (6)Maximum VDD: +7V.

Features

COM20020 features: (1)24-Pin Embedded Network Controller/ Transceiver/RAM; (2)Ideal for Industrial/Factory Automation and Automotive Applications; (3)Deterministic, 5 Mbps, Token Passing ARCNET Protocol; (4)Minimal Microcontroller and Media Interfaces; (5)Flexible Microcontroller Interface for Use with 80XX, 68XX, etc.
