Product Summary
The CXA1082BQ is a Servo Signal Processor for CD Player.
Parametrics
CXA1082BQ absolute maximum ratings: (1)Supply voltage, VCC-VEE: 12V; (2)Operating temperature, TOPR: -20 to +75℃; (3)Storage temperature, TSTG: -55 to +150℃; (4)Allowable power dissipation, PD: 833mW.
Features
CXA1082BQ features: (1)Single power supply, 5 V; (2)Dual power supply, ±5 V; (3)Low power consumption (165 mW Typ.: ±5 V, 100 mW, 5 V); (4)Servo functions same as the CX20108 (focus, tracking, and sled servo); (5)Built-in auto sequencer; (6)Built-in LPF for spindle servo; (7)Built-in loop filter and VCO for EFM clock reproduction PLL; (8)Fewer external parts; (9)Built-in circuit for preventing sled runaway; (10)Built-in circuit for disc defects; (11)Built-in anti-shock circuit; (12)High-speed access using a linear motor; (13)Sharing of the serial data bus of the microcomputer with the CX23035 or CXD1135Q; (14)Compatible in the upword with the CX20108 for microcomputer software; (15)The peaks of focus search, track jump, and sled kick pulse can be set with external resistors.

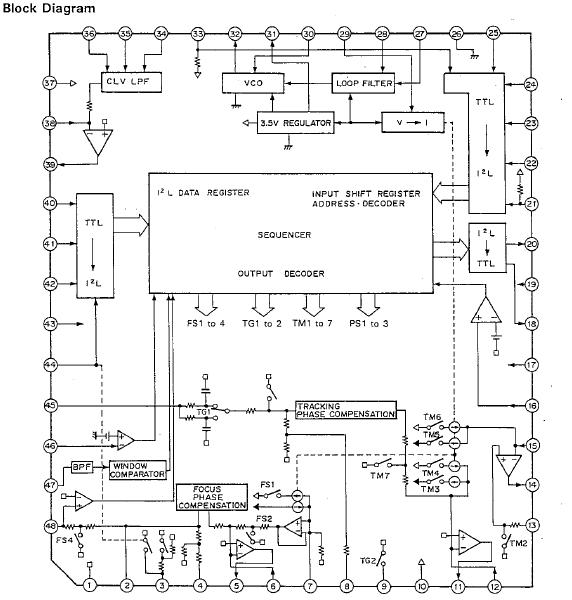

Diagrams
 |
