Product Summary
The CXA1538N is a high performance one-chip bipolar IC designed for FM stereo/AM radio. These include an FM/AM front end, FM/AM IF amplifier, FM/AM detection output and FM stereo demodulator output.
Parametrics
CXA1538N absolute maximum ratings: (1)Supply voltage, VCC: 14 V; (2)Operating temperature, Topr: 0 to +60℃; (3)Storage temperature, Tstg: -55 to +150℃; (4)Junction temperature, Tjmax: 125℃; (5)Allowable power dissipation, PD: 410 mW.
Features
CXA1538N features: (1)Low current consumption (In FM mode ID=11.0 mA, in AM mode 8.5 mA, VCC=6.0 V); (2)Built-in LED drive circuit for tuning; (3)Built-in LED drive circuit for stereo indicator; (4)Built-in muting circuit for the FM band; (5)Few external parts.

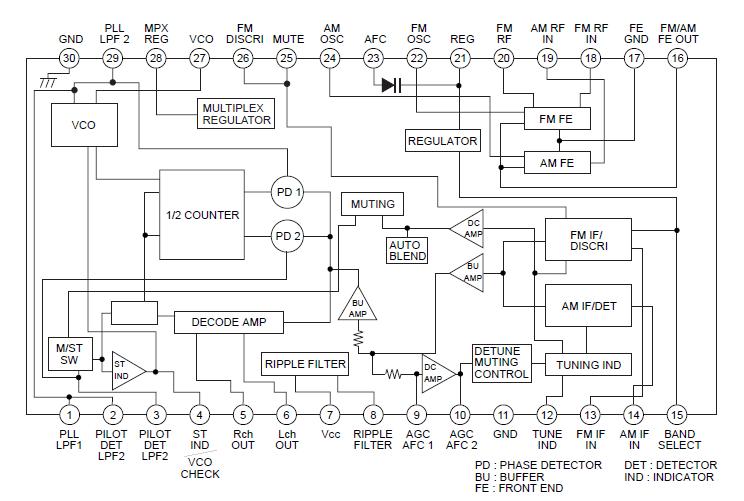

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CXA1538N |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
CXA10 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
CXA10-48D05 |
Emerson / Astec Power |
DC/DC Converters 10W 5V 1A |
Data Sheet |
Negotiable |
|
||||||||||||
|
CXA10-48D05J |
Emerson / Astec Power |
DC/DC Converters 10W 5V 1A |
Data Sheet |
|
|
||||||||||||
|
CXA10-48D12 |
Emerson / Astec Power |
DC/DC Converters 10W 12V 0.41A |
Data Sheet |
Negotiable |
|
||||||||||||
|
CXA10-48D12J |
Emerson / Astec Power |
DC/DC Converters 10W 12V 0.41A |
Data Sheet |
|
|
||||||||||||
|
CXA10-48D12-SJ |
Emerson / Astec Power |
DC/DC Converters 10W 36-75Vin Dual -/+12V -/+0.4A |
Data Sheet |
|
|
||||||||||||
