Product Summary
The CXK5863BM-35 is a 65,536 bits high speed CMOS static RAMS organized as 8,192 words by 8-bits and operate from a single 5V supply. The device is suitable for use in high speed applications such as cash memory.
Parametrics
CXK5863BM-35 absolute maximum ratings: (1)Supply voltage, VCC: -0.5 to +7V; (2)Input voltage, Vin: -0.5 to VCC+0.5V; (3)Input and output voltage, VI/O: -0.5 to VCC+0.5V; (4)Allowable power dissipation, PD: 1.0W; (5)Operating temperature, Topr: 0 to +70℃; (6)Storage temperature, Tstg: -55 to +150℃; (7)Soldering temperature time, Tsolder: 260·10 ℃·sec.
Features
CXK5863BM-35 features: (1)Fast access time 20ns/25ns/30ns; (2)Low power operation 250mW; (3)Single +5V supply: 5V ±10%; (4)Fully static memory, no clock or timing strobe required; (5)Equal access and cycle time; (6)Common data input and output three state output; (7)Directly TTL compatible all inputs and outputs; (8)Full CMOS.

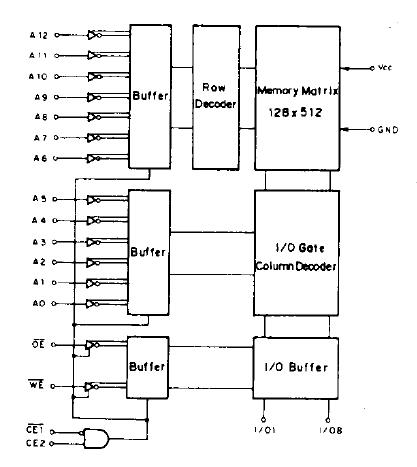

Diagrams
 |
