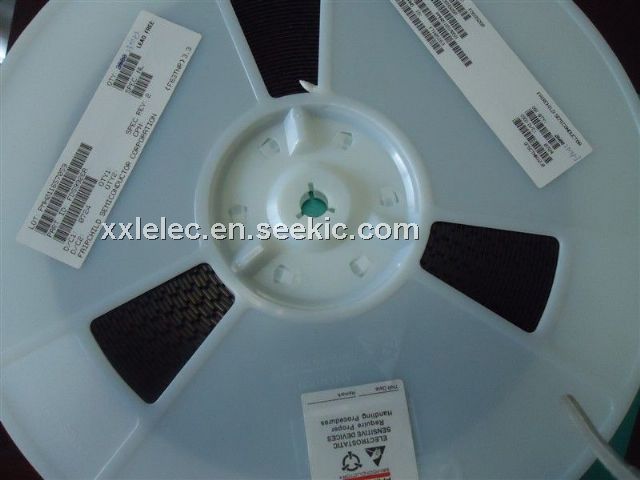

FDS9926A

FDS9926A, N-Channel 2.5V specified MOSFET, 20 V, 2W, 6.5 A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	8.00 / Piece
501 ~ 1000 :	7.00 / Piece
1001 ~ 3000 :	6.00 / Piece

PartNumber:: FDS9926A

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-10

From Other Seller

Part Number:FDS9926A
US $6.00 - 8.00
Quantity:

piece

Product Summary

The FDS9926A N-Channel 2.5V specified MOSFET useS Fairchild Semiconductor’s advanced PowerTrench process. The FDS9926A has been optimized for power management applications with a wide range of gate drive voltage (2.5V – 10V). Applications are (1)battery protection; (2)load switch; (3)power management.

Parametrics

FDS9926A absolute maximum ratings: (1)VDSS Drain-Source Voltage: 20 V; (2)VGSS Gate-Source Voltage: ±10 V; (3)ID Drain Current – Continuous: 6.5 A; (4)Power Dissipation for Dual Operation: 2W; (5)Power Dissipation for Single Operation: 1.6W; (6)TJ, TSTG Operating and Storage Junction Temperature Range: -55 to +150 °C.

Features

FDS9926A features: (1)6.5 A, 20 V. RDS(ON)= 0.030 Ω @ VGS = 4.5 V RDS(ON)= 0.043 Ω @ VGS = 2.5 V.; (2)Optimized for use in battery protection circuits; (3)±10 VGSS allows for wide operating voltage range; (4)Low gate charge.
