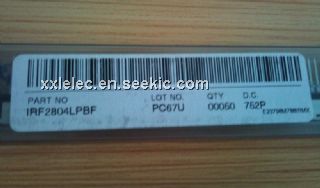

IRF2804LPBF

IRF2804LPBF, automotive MOSFET, TO, 40V, 75A, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.90~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.95 / Piece
501 ~ 10000 :	2.90 / Piece

PartNumber:: IRF2804LPBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 12+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-20

From Other Seller

Part Number:IRF2804LPBF
US $2.90 - 3.00
Quantity:

piece

Product Summary

The IRF2804LPBF is an automotive MOSFET. Specifically designed for Automotive applications, this HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175℃ junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.

Parametrics

IRF2804LPBF absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V (Silicon Limited): 270 A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V (See Fig. 9): 190A; (3)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V (Package Limited): 75A; (4)IDM, Pulsed Drain Current: 1080A; (5)PD @TC = 25℃, Maximum Power Dissipation: 300 W; (6)Linear, Derating Factor: 2.0 W/℃; (7)VGS, Gate-to-Source Voltage: ±20 V; (8)EAS, Single Pulse Avalanche Energy (Thermally Limited): 540mJ; (9)EAS, (tested) Single Pulse Avalanche Energy Tested Value: 1160mJ; (10)IAR, Avalanche Current: See Fig.12a,12b,15,16 A; (11)EAR, Repetitive Avalanche Energy: See Fig.12a,12b,15,16 mJ; (12)TJ, TSTG, Operating Junction and Storage Temperature Range: -55 to 175℃; (13)Soldering Temperature, for 10 seconds: 300 (1.6mm from case); (14)Mounting torque, 6-32 or M3 screw: 10 lbf·in (1.1N·m).

Features

IRF2804LPBF features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Repetitive Avalanche Allowed up to Tjmax; (6)Lead-Free.
