LM317MDTG

LM317MDTG, 3-Terminal Adjustable Output Positive Voltage Regulator, TO, 40 Vdc, 500mA, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.40~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.50 / Piece
101 ~ 500 :	1.45 / Piece
501 ~ 10000 :	1.40 / Piece

PartNumber:: LM317MDTG

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 12+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-21

From Other Seller

Part Number:LM317MDTG
US $1.40 - 1.50
Quantity:

piece

Product Summary

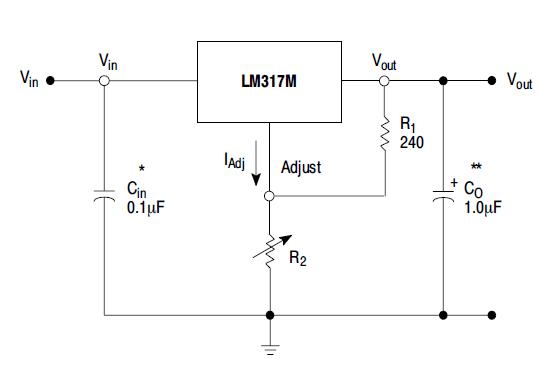

The LM317MDTG is an adjustable three-terminal positive voltage regulator capable of supplying in excess of 500 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof. The LM317MDTG serves a wide variety of applications including local, on-card regulation. This device also makes an especially simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317MDTG can be used as a precision current regulator.

Parametrics

LM317MDTG absolute maximum ratings: (1)Input.Output Voltage Differential, VI-VO: 40 Vdc; (2)Operating Junction Temperature Range, TJ: -40 to +125℃; (3)Storage Temperature Range, Tstg: -65 to +150℃.

Features

LM317MDTG features: (1)Output Current in Excess of 500 mA; (2)Output Adjustable between 1.2 V and 37 V; (3)Internal Thermal Overload Protection; (4)Internal Short Circuit Current Limiting; (5)Output Transistor Safe-Area Compensation; (6)Floating Operation for High Voltage Applications; (7)Eliminates Stocking Many Fixed Voltages; (8)Pb-Free Packages are Available.
