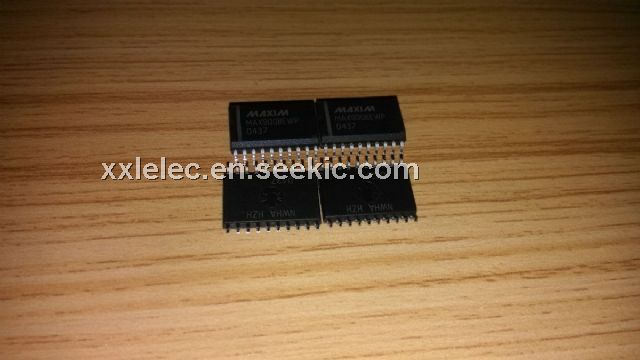

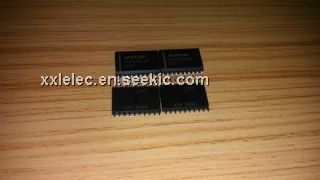

MAX900BEWP

MAX900BEWP, single/dual/quad voltage comparator, 12V, 500mW, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	10.00 / Piece
501 ~ 1000 :	9.00 / Piece
1001 ~ 3000 :	8.00 / Piece

PartNumber:: MAX900BEWP

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:MAX900BEWP
US $8.00 - 10.00
Quantity:

piece

Product Summary

The MAX900BEWP high-speed, low-power, single/dual/quad voltage comparator features differential analoginputs and TTL-logic outputs with active internal pullups.Fast propagation delay (8ns typ at 5mV overdrive)makes the MAX900BEWP ideal for fast A/D convertersand sampling circuits, line receivers, V/F converters,and many other data-discrimination applications. Applications are (1)High-Speed A/D Converters; (2)High-Speed V/F Converters; (3)Line Receivers; (4)Threshold Detectors; (5)Input Trigger Circuitry; (6)High-Speed Data; (7)Sampling; (8)PWM Circuits.

Parametrics

MAX900BEWP absolute maximum ratings: (1)Analog Supply Voltage (VCC to VEE): +12V; (2)Digital Supply Voltage (VDD to GND): +7V; (3)Internal Power Dissipation: 500mW; (4)Junction Temperature: -65°C to +160°C; (5)Storage Temperature Range: -65°C to +150°C; (6)Lead Temperature (soldering, 10s): +300°C.

Features

MAX900BEWP features: (1)8ns (typ) Propagation Delay; (2)18mW/Comparator Power Consumption (+5V, typ); (3)Separate Analog and Digital Supplies; (4)Flexible Analog Supply: +5V to +10V or ±5V; (5)Input Range Includes Negative Supply Rail; (6)TTL-Compatible Outputs; (7)TTL-Compatible Latch Inputs (Except MAX901).
