Product Summary
The MT4LC8M8C2TG-5 is an 8 Meg x 8 DRAM. The MT4LC8M8C2TG-5 is a high-speed CMOS, dynamic random-access memory device containing 67,108,864 bits and designed to operate from 3V to 3.6V. The device is functionally organized as 8,388,608 locations containing eight bits each. The 8,388,608 memory locations are arranged in 4,096 rows by 2,048 columns on the C2 version and 8,192 rows by 1,024 columns on the P4 version. During READ or WRITE cycles, each location is uniquely addressed via the address bits.
Parametrics
MT4LC8M8C2TG-5 absolute maximum ratings: (1)Voltage on VCC Relative to VSS: -1V to +4.6V; (2)Voltage on NC, Inputs or I/O Pins Relative to VSS: -1V to +4.6V; (3)Operating Temperature, TA (ambient): 0℃ to +70℃; (4)Storage Temperature (plastic): -55℃ to +150℃; (5)Power Dissipation: 1W.
Features
MT4LC8M8C2TG-5 features: (1)Single +3.3V ±3.3V power supply; (2)Industry-standard x8 pinout, timing, functions, and packages; (3)12 row, 11 column addresses (C2) or 13 row, 10 column addresses (P4); (4)High-performance CMOS silicon-gate process; (5)All inputs, outputs and clocks are LVTTLcompatible; (6)Extended Data-Out (EDO) PAGE MODE access; (7)4,096-cycle CAS#-BEFORE-RAS# (CBR) REFRESH distributed across 64ms; (8)Optional self refresh (S) for low-power data retention.

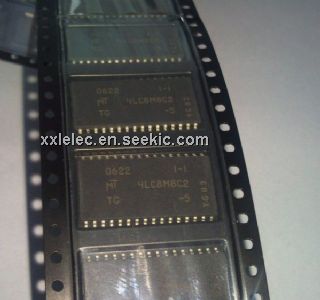

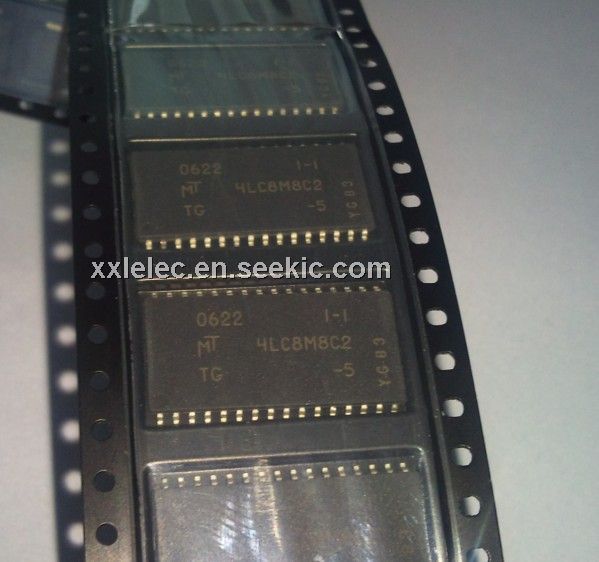

Diagrams
