The OZ9926AGN is a Smart ACPI/SCI (System Control Interrupt) General Purpose Input/Output unit allows OEMs to transform their legacy systems to ACPI compliant systems by supporting up to 16 extra SCI inputs. Regular core logic chipsets, such as the Intel 430TX/BX and ACPI compliant embedded controllers have limited allowance for the GPIO or SCI input signals for the system. The OZ9926AGN provides a bridge between the chipsets and the rest of the system to allow system designers a cost-effective way to improvise for such a deficiency.
Parametrics
OZ9926AGN absolute maximum ratings: (1)DC Power Supply Voltage, VCC: 3.0 to 3.6 V; (2)DC Input, Output Voltage, VIN, VOUT: -0.3 to VDD +0.3 V; (3)DC Current Drain VDD and VSS Pins, IIN: ±10 mA; (4)Storage Temperature, TSTG: -40 to +125℃; (5)Operation Temperature, TOPERI: 0 to 70℃.
Features
OZ9926AGN features: (1)SMBus, version 1.0, Compliance; (2)Master mode function to interface with ACPI compliant embedded controller; (3)Support Pentium and x86-based designs; (4)Supported by default embedded controller firmware; (5)Accept up to 16 SCI inputs; (6)Programmable level or edge (falling and rising edge) triggered SCI inputs; (7)20 possible edge-sensitive programmable General Purpose Inputs/Outputs per device; (8)Programmable addresses for cascading OZ992s; (9)32KHz operating frequency; (10)Supports 3.3v or 5v supply; (11)LOW-power hardware-driven speaker alarm output; (12)Software programming kit available; (13)SMBALERT# and SMIEVENT outputs; (14)8 programmable interrupt inputs for SMI event or SMBALERT#; (15)8 Auto LED Flash(ALF) programmable outputs with 10% or 50% duty cycles.

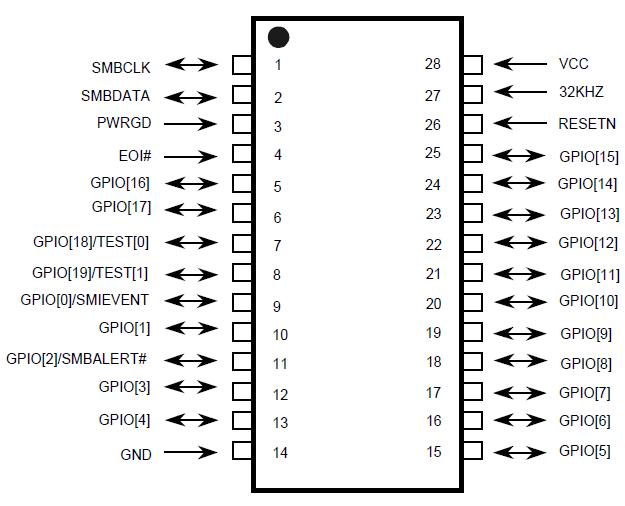

Diagrams
 |
