Product Summary

The RFB1010-102L is a low cost power inductor offers a wide range of inductance values, from 2.2 μH to 18 mH. The device has an open magnetic construction that gives it high current carrying capabilities. The RFB1010-102L offers the lowest profile (7,5 mm) and a standard 5 mm pin spacing. The larger RFB0810 and RFB1010 Series have lower DC resistance and higher current ratings. The RFB1010-102L also has a PVC wrap to protect the winding.

Diagrams

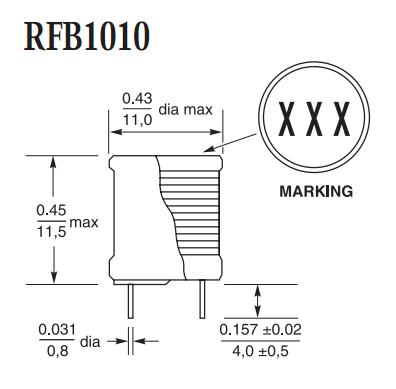

RFB1010-102L block diagram
