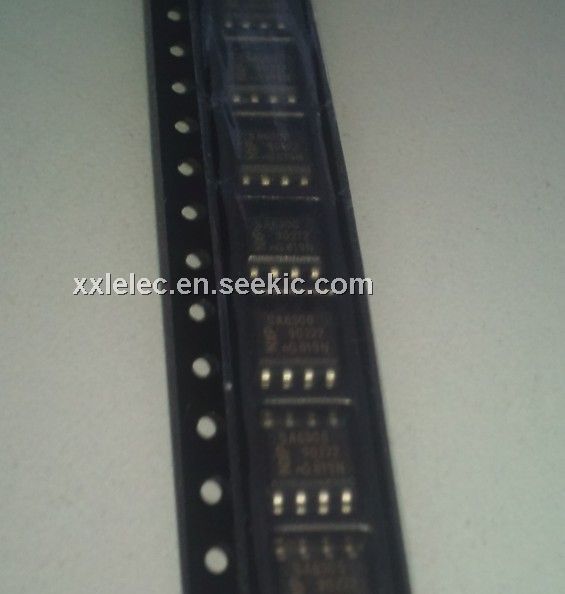

Product Summary
The SA630D is a wideband RF switch fabricated in BiCMOS technology and incorporating on-chip CMOS/TTL compatible drivers. Its
primary function is to switch signals in the frequency range DC -1GHz from one 50Ω channel to another. The switch is activated by a CMOS/TTL compatible signal applied to the enable channel 1 pin (ENCH1). The extremely low current consumption makes the SA630D ideal for portable applications. The excellent isolation and low loss makes this a suitable replacement for PIN diodes. The SA630D is available in an 8-pin dual in-line plastic package and an 8-pin SO (surface mounted miniature) package.
Parametrics
SA630D absolute maximum ratings: (1)VDD, Supply voltage: -0.5 to +5.5 V; (2)PD, Power dissipation, TA = 25℃ (still air), 8-Pin Plastic DIP: 1160mW; 8-Pin Plastic SO: 780mW; (3)TJMAX, Maximum operating junction temperature: 150℃; (4)PMAX, Maximum power input/output: +20 dBm; (5)TSTG, Storage temperature range: -65 to +150℃.
Features
SA630D features: (1)Wideband (DC - 1GHz); (2)Low through loss (1dB typical at 200MHz); (3)Unused input is terminated internally in 50?; (4)Excellent overload capability (1dB gain compression point +18dBm; (5)at 300MHz); (6)Low DC power (170μA from 5V supply); (7)Fast switching (20ns typical); (8)Good isolation (off channel isolation 60dB at 100MHz); (9)Low distortion (IP3 intercept +33dBm); (10)Good 50Ω match (return loss 18dB at 400MHz); (11)Full ESD protection; (12)Bidirectional operation.

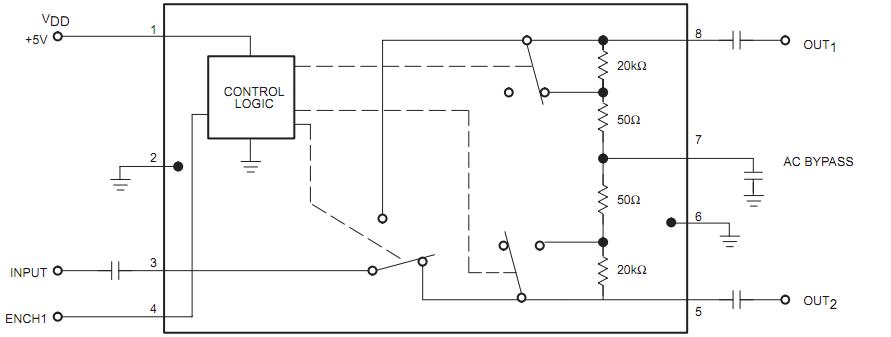

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SA630D/01 |
NXP Semiconductors |
RF Switch ICs SPDT SW -40 TO +85 |
Data Sheet |
Negotiable |
|
||||||||||||
|
SA630D/01,112 |
NXP Semiconductors |
RF Switch ICs SPDT SW -40 TO +85 |
Data Sheet |
|
|
||||||||||||
|
SA630D/01,118 |
NXP Semiconductors |
RF Switch ICs SPDT SWITCH-40 TO+85 |
Data Sheet |
|
|
||||||||||||
