Product Summary

The SKD6216 is a Power Bridge Rectifier. The applications of the SKD6216 include Three phase rectifiers for power supplies, Input recifiers for variable frequency drives, Rectifiers for DC motor field supplies, Battery charger rectifiers.

Parametrics

SKD6216 absolute maximum ratings: (1)ID: 86 A; (2)IFSM: 500 A; (3)I2T: 1250 A2S; (4)VF: 1.8 V; (5)VTO: 0.85 V; (6)RT: 8 mΩ; (7)IRD: 0.5 mA; (8)RTHJ-C: 1.5 K/W; (9)RTHC-S: 0.07 K/W; (10)TVJ: -40 to +150 ℃; (11)TSTG: -40 to +125 ℃; (12)VISOL: 3600 V; (13)MS: 5 ± 15 % Nm; (14)MT: 5 ± 15 % Nm; (15)M: 165 g; (16)CASE: G 36.

Features

SKD6216 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1800 V; (4)High surge currents; (5)Three phase bridge rectifier; (6)Easy chassis mounting; (7)UL recognized, file no. E 63532.

Diagrams

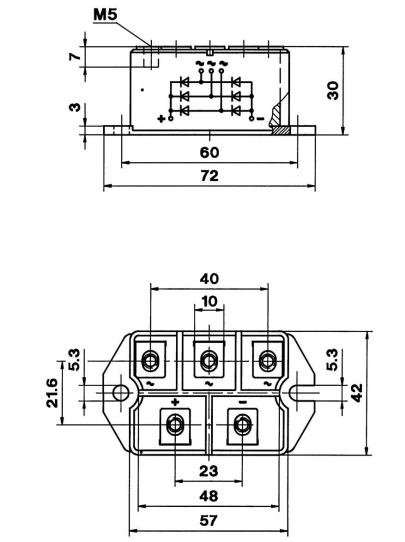

SKD6216 block diagram
