Product Summary

The STI5528GWBL is a set top box/DVD backend decoder with integrated host processor. The STI5528GWBL offers a high level of integration by reducing the complete set top box decoding chain from Transport Demux to PAL/NTSC Encoder onto one chip. At the same time. The STI5528GWBL dramatically enhances CPU and Graphics performance, and cuts down total system memory cost.

Parametrics

STI5528GWBL absolute maximum ratings: (1)Place of Origin: France; (2)Brand Name: ST; (3)Model Number: STI5500MVB-X; (4)Type: Voltage Regulator; (5)Application: Telecommunication; (6)Supply Voltage: 1.5V to 5.5V; (7)Operating Temperature: -40℃ to +85℃; (8)D/C: 10+.

Features

STI5528GWBL features: (1)enhanced 32-bit VL-RISC CPU; (2)high performance memory/cache subsystem; (3)combined video and audio decoder core; (4)PAL/NTSC encoder; (5)high performance SDRAM memory interface; (6)programmable memory interface; (7)link interface; (8)vectored interrupts -8 prioritized levels; (9)DMA engines/interfaces; (10)professional toolset support; (11)non-intrusive debug controller; (12)208 pin PQFP package.

Diagrams

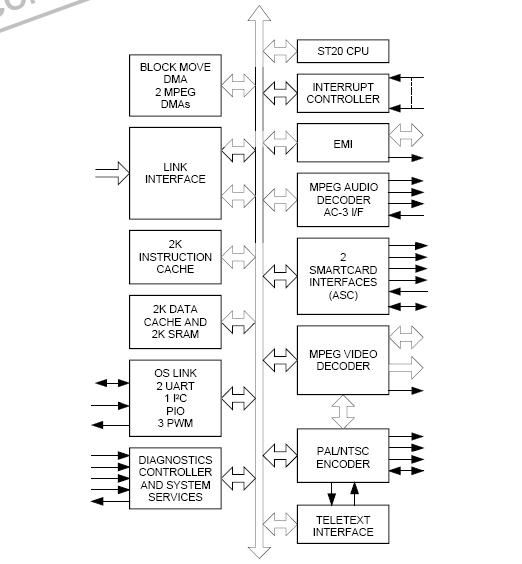

STI5528GWBL block diagram
