S-1170B33PD-OTSTFG

Product Summary

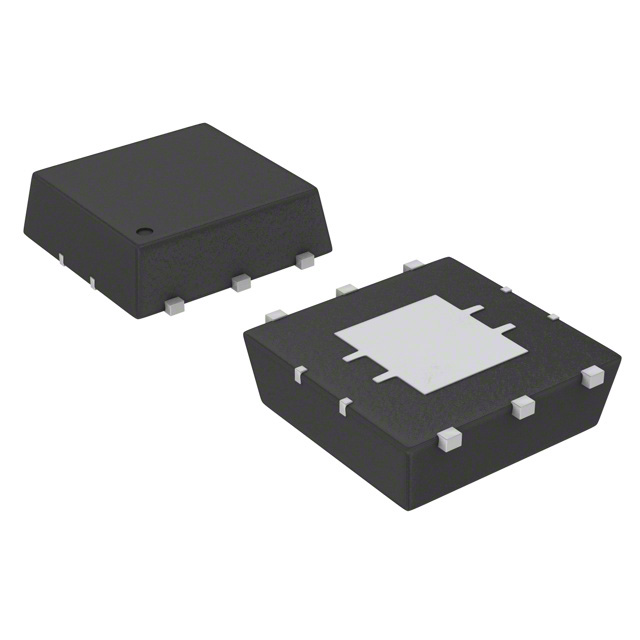

The S-1170B33PD-OTSTFG is a positive voltage regulator with a low dropout voltage, high output voltage accuracy,and low current consumption developed based onCMOS technology. The S-1170B33PD-OTSTFG provides a lowdropout voltage and large output current, a built-inovercurrent protector prevents the load current fromexceeding the current capacitance of the outputtransistor, and a built-in thermal shutdown circuitprevents damage caused by the heat. An S-1170B33PD-OTSTFG ensures a long battery life. Compared with thevoltage regulators using the conventional CMOSprocess, a larger variety of capacitors are available,including small ceramic capacitors. Small SOT-89-5and 6-Pin HSON(A) packages realize high-densitymounting. Applications are (1)power supply for DVD and CD-ROM drives; (2)power supply for battery-powered devices; (3)power supply for personal communication device; (4)power supply for note PCs.

Parametrics

S-1170B33PD-OTSTFG absolute maximum ratings: (1)Input voltage VIN VSS: -0.3 to VSS + 7 V; (2)VON/OFF VSS: -0.3 to VIN + 0.3 V; (3)Output voltage VOUT VSS: -0.3 to VIN + 0.3 V; (4)Power SOT-89-5 dissipation 6-Pin HSON(A) PD: 1000 mW; (5)Operating ambient temperature Topr: -40 to +85 °C; (6)Storage temperature Tstg: -40 to +125 °C.

Features

S-1170B33PD-OTSTFG features: (1)Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V steps.; (2)High-accuracy output voltage: ±1.0%; (3)Low dropout voltage: 120 mV typ(3.0 V output product, IOUT = 300 mA); (4)Low current consumption: During operation: 80 μA typ., 160 μA max.; (5)During shutdown: 0.1 μA typ., 1.0 μA max.; (6)High current capability: 800 mA output is possible (at VIN ≥ VOUT(S) + 1.0 V)*1; (7)Built-in ON/OFF circuit: Ensures long battery life.; (8)Low ESR capacitor can be used: A ceramic capacitor of 4.7 μF or more can be used for the output capacitor.; (9)High ripple rejection: 70 dB typ(at 1.0 kHz); (10)Built-in overcurrent protector: Overcurrent of output transistor can be restricted.; (11)Built-in thermal shutdown circuit: Damage caused by heat can be prevented.; (12)Small package: SOT-89-5, 6-Pin HSON(A); (13)Lead-free products.

Diagrams
