TS78L05CY

TS78L05CY, positive voltage Regulator, 35V, 120Hz, 100mA, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: TS78L05CY

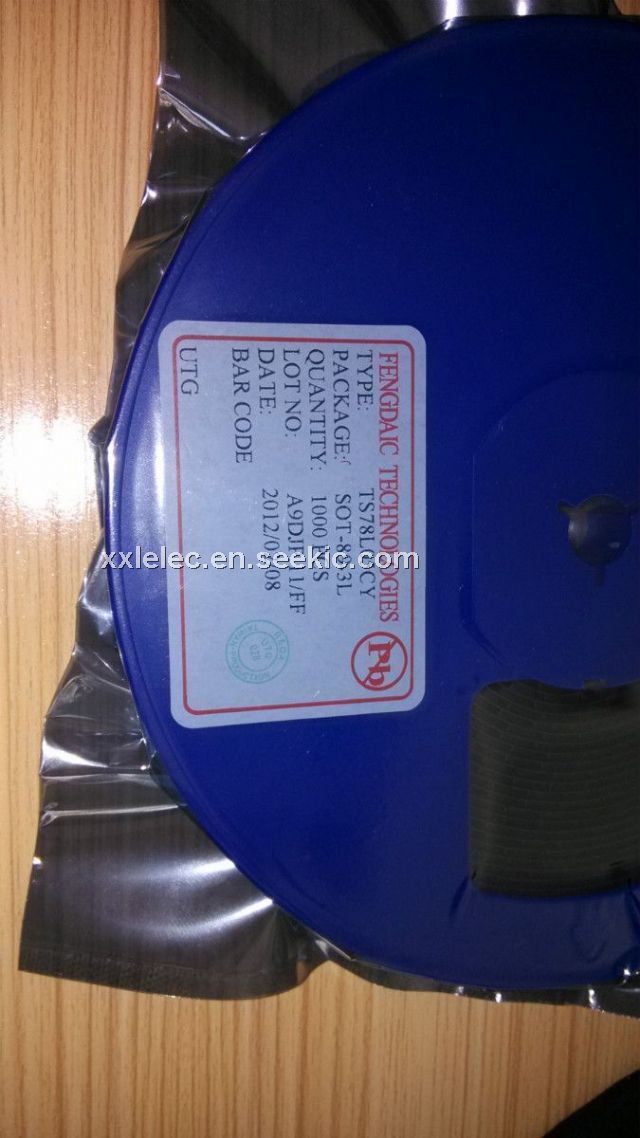

Brand:: Taiwan Semiconductor Company, Ltd - TSC | Pack: SOT | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:TS78L05CY
US $3.00 - 5.00
Quantity:

piece

Product Summary

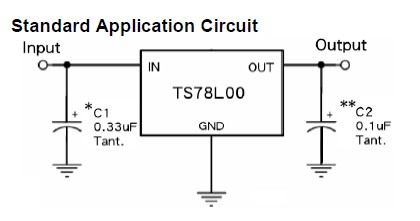

The TS78L05CY positive voltage Regulator is inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100mA. Like their higher power TS78L05CY cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the TS78L05CY in many applications. The TS78L05CY offers a substantial performance advantage over the traditional zener diode-resistor combination, as output impedance and quiescent current are substantially reduced.

Parametrics

TS78L05CY absolute maximum ratings: (1)DC Input Voltage: 35V; (2)Power Dissipation PD: Internal Limited W; (3)Operating Junction Temperature TJ: 0 ~ +125°C; (4)Storage Temperature Range TSTG: -65~+150°C; (5)Ripple Rejection Ratio RR f=120Hz, 5.8V≤Vin≤20V: 41 to 49dB; (6)Voltage Drop Vdrop Iout=100mA, Tj=25°C: 2V; (7)Peak Output Current Io peak Tj=25°C: 0.15A.

Features

TS78L05CY features: (1)Output Voltage Range 3.3 to 24V; (2)Output current up to 100mA; (3)No external components required; (4)Internal thermal overload protection; (5)Internal short-circuit current limiting; (6)Output transistor safe-area compensation; (7)Output voltage offered in 4% tolerance.
