Product Summary
The UDA1334 is a single chip 2 channel digital-to-analog converter employing bitstream conversion techniques, including an on-board PLL. The extremely low power consumption and low voltage requirements make the UDA1334 eminently suitable for use in low-voltage low-power portable digital audio equipment which incorporates a playback function. The UDA1334 is excellently suitable for digital audio portable application, specially in applications in which an audio related system clock is not present.
Parametrics
UDA1334 absolute maximum ratings: (1)VDD supply voltage: 4.0 V; (2)Txtal(max)maximum crystal temperature: 150 °C; (3)Tstg storage temperature: -65 to +125 °C; (4)Tamb ambient temperature: -40 to +85 °C; (5)Ves electrostatic handling voltage human body model: -2000 to +2000 V; (6)machine model: -250 to +250 V; (7)Isc(DAC)short-circuit current of DAC output short-circuited to VSSA: 450 mA, output short-circuited to VDDA: 300 mA.
Features
UDA1334 features: (1)Integrated digital filter plus DAC; (2)Supports sample frequencies from 16 to 100 kHz in asynchronous DAC mode; (3)No analog post filtering required for DAC; (4)Easy application; (5)SSOP16 package.

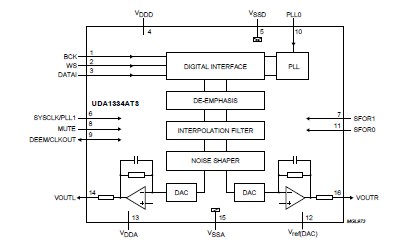

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UDA1334ATS/N2,118 |
NXP Semiconductors |
DAC (D/A Converters) ULTRA LOW COST DAC |
Data Sheet |
|
|
||||||||||||
|
UDA1334BTD |
NXP Semiconductors |
DAC (D/A Converters) LOW POWER AUDIO DAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
UDA1334BTS/N2,118 |
NXP Semiconductors |
DAC (D/A Converters) ULTRA LOW COST DAC |
Data Sheet |
|
|
||||||||||||
|
UDA1334BTSDH-T |
NXP Semiconductors |
DAC (D/A Converters) ULTRA LOW COST DAC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
UDA1334TS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
UDA1334BTS/N2,112 |
NXP Semiconductors |
Audio D/A Converter ICs ULTRA LOW COST DAC |
Data Sheet |
|
|
||||||||||||
|
UDA1334BTS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
UDA1334BT/N2,118 |
NXP Semiconductors |
Audio D/A Converter ICs LOW POWER AUDIO DAC |
Data Sheet |
Negotiable |
|
||||||||||||
