Product Summary
The UDN6118A is a vacuum fluorescent display driver. Consisting of eight npn Darlington output stages and the associated common-emitter input stages, the UDN6118A is designed to interface between low-level digital logic and vacuum fluorescent displays. The UDN6118A is capable of driving the digits and/or segments of these displays and are designed to permit all outputs to be activated simultaneously. Pull-down resistors are incorporated into each output and no external components are required for most fluorescent display applications.
Parametrics
UDN6118A absolute maximum ratings: (1)Supply Voltage, VBB: 85 V; (2)Input Voltage, VIN: 20 V; (3)Output Current, IOUT: 40 mA; (4)Operating Temperature Range, TA: -20°C to +85°C; (5)Storage Temperature Range, TS: -55°C to +150°C.
Features
UDN6118A features: (1)Digit or Segment Drivers; (2)Low Input Current; (3)Integral Output Pull-Down Resistors; (4)High Output Breakdown Voltage; (5)Single or Split Supply Operation; (6)Automotive Capable.

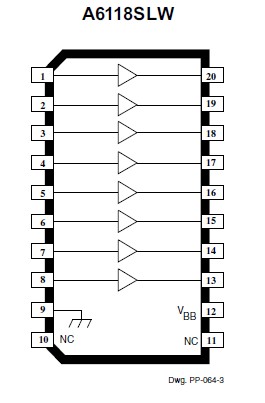

Diagrams
