Product Summary
The VP0610T(VOGBF) is a P-Channel 60-V (D-S) MOSFET. The applications of the VP0610T(VOGBF) include Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc., Battery Operated Systems, Power Supply, Converter Circuits, Motor Control.
Parametrics
VP0610T(VOGBF) absolute maximum ratings: (1)Drain-Source Voltage, VDS: -60V; (2)Gate-Source Voltage, VGS: ±30V; (3)Continuous Drain Current(TJ = 150℃), TA= 25℃, ID: -0.12A; TA= 100℃, ID: -0.11A; (4)Pulsed Drain Current, IDM: -0.8A; (5)Power Dissipation, TA= 25℃, PD: 0.36W; TA= 100℃, PD: 0.32W; (6)Thermal Resistance, Junction-to-Ambient, RthJA: 350℃/W; (7)Operating Junction and Storage Temperature Range, TJ, Tstg: -55 to 150℃.
Features
VP0610T(VOGBF) features: (1)High-Side Switching; (2)Low On-Resistance: 8Ω; (3)Low Threshold: -1.9 V; (4)Fast Switching Speed: 16 ns; (5)Low Input Capacitance: 15 pF.

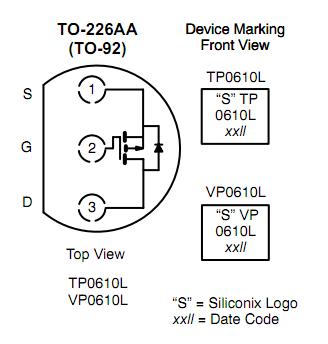

Diagrams
