Product Summary
The VPX3226FC4 is a Video Pixel Decoder. The VPX3226FC4 is the third generation of full feature video acquisition ICs for consumer video and multimedia applications. All of the processing necessary to convert an analog video signal into a digital component stream have been integrated onto a single 44-pin IC.
Parametrics
VPX3226FC4 absolute maximum ratings: (1)TA Ambient Temperature: 0 to 65 °C; (2)TS Storage Temperature: –40 to 125 °C; (3)TJ Junction Temperature: 0 to 125 °C; (4)VSUPA Supply Voltage, all Supply Inputs: –0.3 to 6 V; (5)VSUPD: –0.3 to 4 V; (6)PTOT MAX Power Dissipation due to package characterstics (PMQFP44)VDD, PVDD, AVDD: 935 mW.
Features
VPX3226FC4 features: (1)hue, brightness, contrast, and saturation control; (2)dual window cropping and scaling; (3)horizontal resizing between 32 and 864 pixels/line; (4)vertical resizing by line dropping; (5)high-quality anti-aliasing filter; (6)scaling controlled peaking and coring; (7)44-pin PLCC and PMQFP packages; (8)reduced power consumption of below 500 mW; (9)I2C serial control, 2 different device addresses; (10)on-chip clock generation, only one crystal needed for all standards; (11)user programmable output pins; (12)power-down mode; (13)IEEE 1149.1 (JTAG)boundary scan interface; (14)8 input or user programmable output pins.

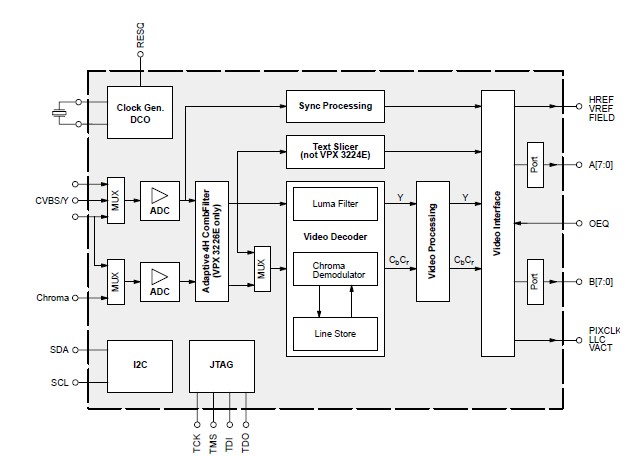

Diagrams
