Product Summary

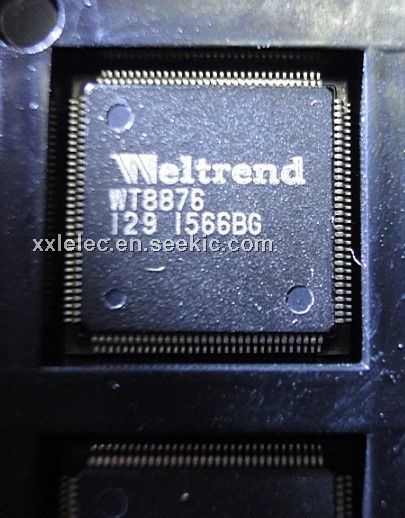

The WT8876 is a LCD monitor controller. The WT8876 is an input format converter for the TFT-LCD panels or LCD-TV applications. It accepts digital signals from ADC’s RGB output. YUV from digital video decoder or digital RGB graphics from panelLink TMDS receiver and transforms these signals to TFT-LCD panel to display. The WT8876 performs image scaling on 24 bit RGB or YUV data stream and feeds these scaled pixels to the output LCD panel.

Features

WT8876 features: (1)24bit RGB input; (2)8/16 bit YUV 4:2:2 video input support; (3)CCIR601/656 support with built-in YUV to RGB color space converter; (4)DDWG/DVI1.0 compliant.

Diagrams

WT8876 block diagram
