Product Summary
The a1425lk-t is an ac-coupled Hall-effect sensor which is a monolithic integrated circuit that switches in response to changing differential magnetic fields created by rotating ring magnets and, when coupled with a magnet, by ferrous targets. The a1425lk-t is a true zero-crossing detector: the output switches precisely when the difference in magnetic field strength between the two Hall elements is zero. A unique dual-comparator scheme provides for accurate switching at the zero crossing on both the positive and negative-going regions of the differential signal, while utilizing hysteresis to prevent false switching. The zero-crossing nature of this a1425lk-t provides excellent repeatability and accuracy for crankshaft applications.
Parametrics
a1425lk-t absolute maximum ratings: (1)Supply Voltage, VCC: 28 V; (2)Reverse-Supply Voltage, VRCC: –18 V; (3)Continuous Output Current, IOUT: 25 mA; (4)Continuous Reverse-Output Current, IROUT: –50 mA; (5)Operating Temperature Ambient, TA: –40℃ to 150℃; (6)Maximum Junction, TJ(max): 165℃; (7)Storage Temperature, TS: –65℃ to 170℃.
Features
a1425lk-t features: (1)Senses motion of ring magnet or ferrous targets; (2)?Integrated filter capacitor; (3)Wide operating temperature range; (4)Operation with magnetic input signal frequency from 20 Hz to 20 kHz; (5)Resistant to EMI; (6)Large effective air gaps; (7)4.0 to 26.5 V supply operating range; (8)Output compatible with both TTL and CMOS logic families; (9)Reverse battery protection; (10)Resistant to mechanical and thermal stress; (11)Accurate true zero crossing switchpoint.

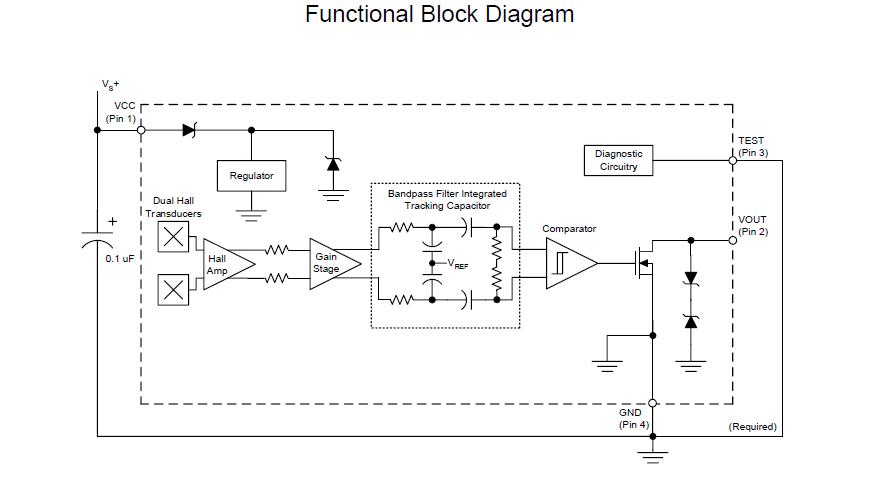

Diagrams
