Product Summary

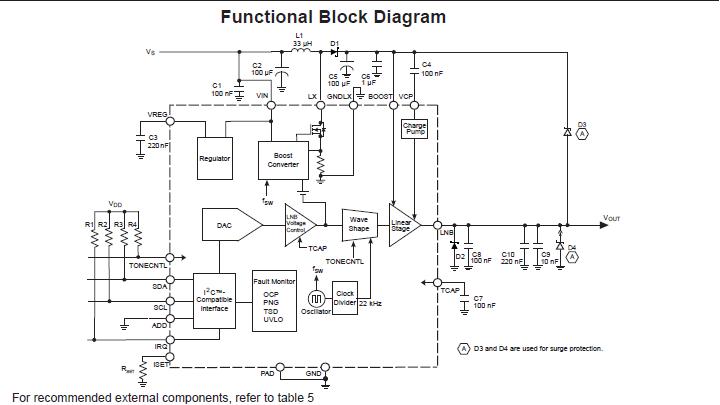

The a8296sestr-t is a single low noise block converter regulator which is a monolithic linear and switching voltage regulator, specifically designed to provide the power and the interface signals to an LNB down converter via coaxial cable. The a8296sestr-t requires few external components, with the boost switch and compensation circuitry integrated inside of the device. The a8296sestr-t has been designed for high efficiency, utilizing the Allegro advanced BCD process. The integrated boost switch has been optimized to minimize both switching and static losses. To further enhance efficiency, the voltage dropacross the tracking regulator has been minimized.

Parametrics

a8296sestr-t absolute maximum ratings: (1)Load Supply Voltage, VIN pin VIN: 30 V; (2)Output Current IOUT Internally: Limited A; (3)Output Voltage; LNB and BOOST pins: –0.3 to 33 V; (4)Output Voltage; LX pin: –0.3 to 30 V; (5)Output Voltage; VCP pin: –0.3 to 41 V; (6)Logic Input Voltage: –0.3 to 5.5 V; (7)Logic Output Voltage: –0.3 to 5.5 V; (8)Operating Ambient Temperature TA Range S: –20 to 85℃; (9)Junction Temperature TJ(max): 150℃; (10)Storage Temperature Tstg: –55 to 150℃.

Features

a8296sestr-t features: (1)Integrated boost MOSFET, current sensing, and compensation; (2)Supplies up to 500 mA continuously; (3)Adjustable LNB output current limit from 300 to 500 mA; (4)Boost peak current limit scales with LNB current limit setting; (5)8 programmable LNB output voltage (DAC) levels; (6)LNB overcurrent limiter with shutdown timer; (7)Tracking boost converter minimizes power dissipation; (8)LNB transition times configurable by external capacitor; (9)Push-pull LNB output stage maintains 13 to 18 V and 8 to 13 V transition times, even with highly capacitive loads; (10)Built-in 22 kHz tone oscillator facilitates DiSEqC tone encoding, even at no-load; (11)Tone generation does not require additional external components; (12)Diagnostic features: PNG; (13)Extensive protection features: UVLO, OCP, TSD, CPOK; (14)2-wire I2C-compatible interface.
