Product Summary

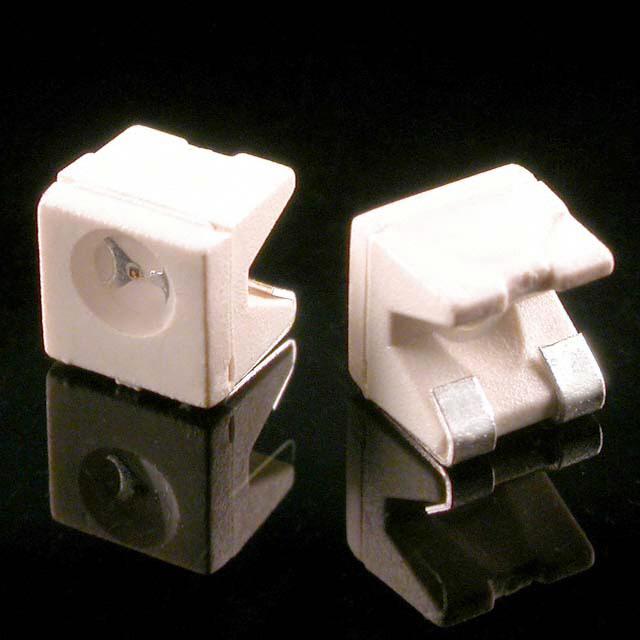

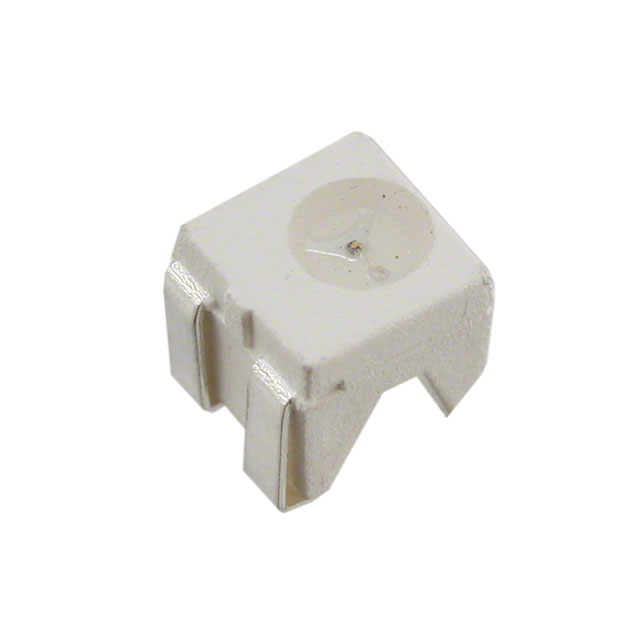

The aa4040qbs/g is a 4.0x4.0mm right angle surface mount LED lamp. It is made with InGaN Light Emitting Diode. Static electricity and surge damage the LEDS. The aa4040qbs/g is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipment and machinery must be electrically grounded.

Parametrics

aa4040qbs/g absolute maximum ratings: (1)Power dissipation: 120 mW; (2)DC Forward Current: 30 mA; (3)Peak Forward Current: 150 mA; (4)Reverse Voltage: 5 V; (5)Operating Temperature: -40℃ to +85℃; (6)Storage Temperature: -40℃ to +85℃.

Features

aa4040qbs/g features: (1)Single color; (2)Suitable for all SMT assembly and solder process; (3)Available on tape and reel; (4)Ideal for backlighting; (5)Package: 500pcs / reel; (6)Moisture sensitivity level: level 3; (7)RoHS compliant.

Diagrams

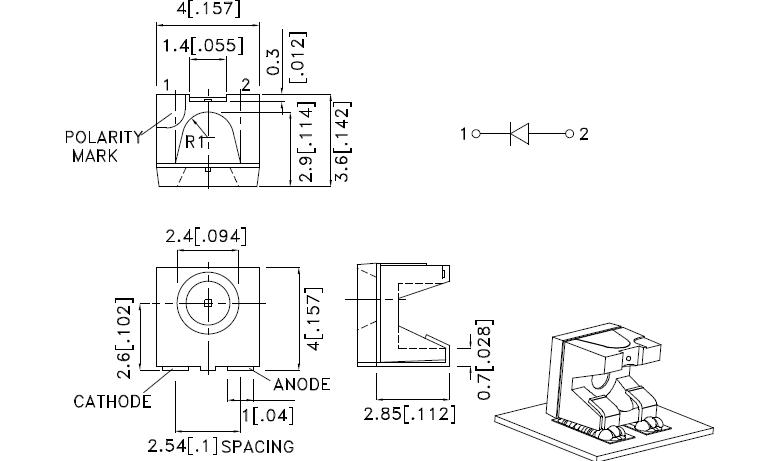

aa4040qbs/g package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AA4040QBS/G
AA4040QBS/G
Kingbright
Standard LED - SMD Blue Water Clear 465nm 300mcd
Data Sheet
0-1: $0.68
1-10: $0.51
10-100: $0.41
100-200: $0.38
200-500: $0.32
