Product Summary
The aat3526icx-3.08-20 is a MicroPower Supervisory Circuit with Manual Reset. The aat3526icx-3.08-20 PowerManager product is members of AnalogicTech’s Total Power Management IC (TPMIC) product family. These microprocessor reset circuits of the aat3526icx-3.08-20 are ideal for monitoring voltage supplies in portable systems, where extended battery life is critical. The applications of the aat3526icx-3.08-20 include Cell Phones, Embedded Systems, Intelligent Instruments, Notebook Computers, Portable Electronics.
Parametrics
aat3526icx-3.08-20 absolute maximum ratings: (1)VCC, VCC to GND: -0.3 to 5.5 V; (2)VMR, MR to GND: -0.3 to VCC + 0.3 V; (3)VRESET, RESET to GND (Push-Pull Output): -0.3 to VCC + 0.3 V; (4)IVCC, IMR, Maximum Continuous Input Current: 20 mA; (5)IRESET, RESET/RESET Current: 20 mA; (6)dVcc/dt, Rate of Rise of VCC: 100 V/μs; (7)TJ, Operating Junction Temperature Range: -40 to 150 ℃; (8)T, Maximum Soldering Temperature (at Leads) for 10s: 300 ℃.
Features
aat3526icx-3.08-20 features: (1)Input Voltage Range: 1.2V to 5.5V; (2)Operation Down to 1.2V; (3)Extremely Low Quiescent Current: Less Than 2μA; (4)High Accuracy Detection Threshold: ±1.5%; (5)Monitor Power Supply Voltages; (6)Fixed Thresholds From 2.2V to 4.6V; (7)Minimum 150ms Reset Pulse Width With Fast Delay Time ＜ 20μs; (8)Debounced Manual Reset Input; (9)Available Output Configurations: Open-Drain Output; (10)Temperature Range: -40 to +85 ℃; (11)4-Pin SOT143 Package; (12)4kV ESD Rating.

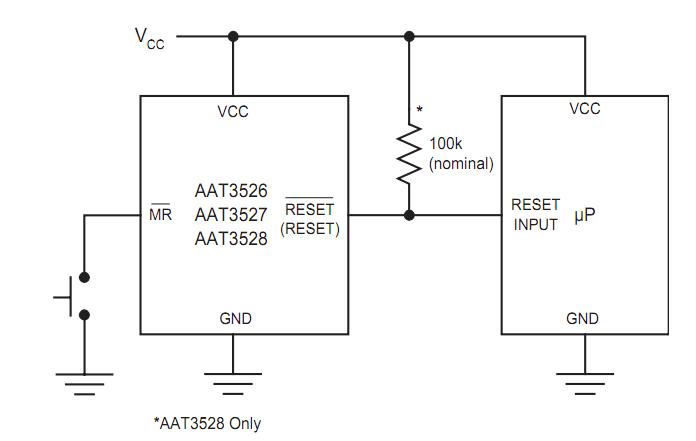

Diagrams
