Product Summary
The ad7541akn is a low cost, high performance 12-bit monolithic multiplying digital-to-analog converter. It is fabricated using advanced, low noise, thin film on CMOS technology and is available in a standard 18-lead DIP and in 20-terminal surface mount packages. The ad7541akn is functionally and pin compatible with the industry standard AD7541 device and offers improved specifications and performance. The improved design ensures that the device is latch-up free so no output protection Schottky diodes are required. The ad7541akn uses laser wafer trimming to provide full 12-bit endpoint linearity with several new high performance grades.
Parametrics
ad7541akn absolute maximum ratings: (1)VDD to GND: +17 V; (2)VREF to GND: ±25 V; (3)VRFB to GND: ±25 V; (4)Digital Input Voltage to GND: -0.3 V to VDD + 0.3 V; (5)OUT 1, OUT 2 to GND: .-03 V to VDD + 0.3 V; (6)Power Dissipation (Any Package) to +75℃: 450 mW; (7)Power Dissipation (Any Package) Derates above +75℃: 6 mW/℃; (8)Operating Temperature Range Industrial: -25℃ to +85℃; (9)Storage Temperature: -65℃ to +150℃; (10)Lead Temperature (Soldering, 10 secs): +300℃.
Features
ad7541akn features: (1)Improved Version of AD7541; (2)Full Four-Quadrant Multiplication; (3)12-Bit Linearity (Endpoint); (4)All Parts Guaranteed Monotonic; (5)TTL/CMOS Compatible; (6)Low Cost; (7)Protection Schottky Diodes Not Required; (8)Low Logic Input Leakage.

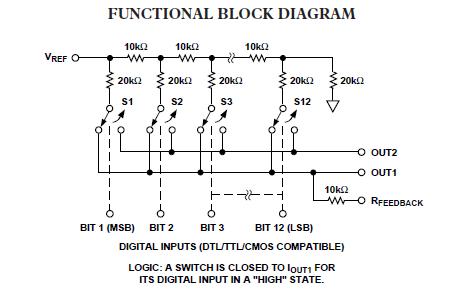

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7541AKN |
|
IC DAC 12BIT MULTIPLYING 18-DIP |
Data Sheet |
|
|
||||||||||||||||
|
AD7541AKNZ |
|
IC DAC 12BIT MULT MONO 18-DIP |
Data Sheet |
|
|
||||||||||||||||
