ADSP-2185KSTZ-133

adsp-2185kstz-133, DSP Microcomputer, QFP, -0.3 V to +4.6 V, 49mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: ADSP-2185KSTZ-133

Brand:: Analog Devices - ADI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:ADSP-2185KSTZ-133
US $2.30 - 2.50
Quantity:

piece

Product Summary

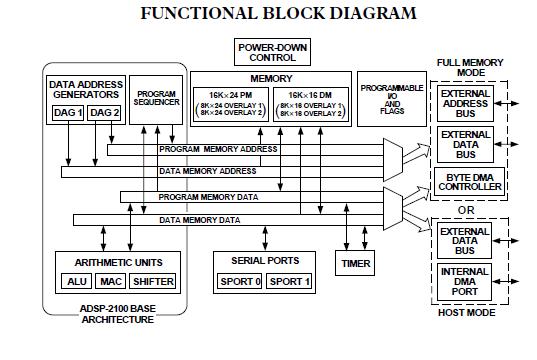

The adsp-2185kstz-133 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The adsp-2185kstz-133 combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities and on-chip program and data memory.

Parametrics

adsp-2185kstz-133 absolute maximum ratings: (1)Supply Voltage: -0.3 V to +4.6 V; (2)Input Voltage: -0.5 V to VDD + 0.5 V; (3)Output Voltage Swing: -0.5 V to VDD + 0.5 V; (4)Operating Temperature Range (Ambient): -40℃ to +85℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature (5 sec) LQFP: +280℃.

Features

adsp-2185kstz-133 features: (1)19 ns Instruction Cycle Time @ 3.3 Volts, 52 MIPS Sustained Performance; (2)Single-Cycle Instruction Execution; (3)Single-Cycle Context Switch; (4)3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle; (5)Multifunction Instructions; (6)Power-Down Mode Featuring Low CMOS Standby, Power Dissipation with 400 Cycle Recovery from Power-Down Condition; (7)Low Power Dissipation in Idle Mode; (8)ADSP-2100 Family Code Compatible, with Instruction Set Extensions; (9)80K Bytes of On-Chip RAM, Configured as 16K Words Program Memory RAM and 16K Words Data Memory RAM; (10)Dual Purpose Program Memory for Instructionê and Data Storage; (11)Independent ALU, Multiplier/Accumulator and Barrel Shifter Computational Units; (12)Two Independent Data Address Generators; (13)Powerful Program Sequencer Provides Zero Overhead Looping Conditional Instruction Execution; (14)Programmable 16-Bit Interval Timer with Prescaler; (15)100-Lead LQFP.
