Product Summary
The adv8003kbcz-8 is a multiple input video signal processor that can de-interlace and scale SD, ED, or HD video data to HD formats; generate a bitmap on-screen display (OSD); and output the video with OSD overlaid on two High Definition Multimedia Interface (HDMI) transmitters and a video encoder. Video can be input into the adv8003kbcz-8 in a number of ways: using the 48-bit TTL pixel port, using the 24-bit external OSD TTL pixel port, or from a device with an HDMI transmitter such as the ADV7850. The adv8003kbcz-8 supports many of the formats outlined in the CEA-861 and VESA specifications, as well as several other widely used timing formats. Using two external DDR2 memories, the adv8003kbcz-8 can perform high performance, motion adaptive interlaced to progressive conversion on SD and HD content. Using a single DDR2 memory, the HD de-interlacing is limited to intrafield.
Parametrics
adv8003kbcz-8 absolute maximum ratings: (1)AVDD1, ADDD2, DVDD_IO to GND: 3.9 V; (2)DVDD, PVDDx, CVDD1, AVDD3, DVDD_DDR, PVDD_DDR to GND: 2.2 V; (3)DVDD/PVDD/CVDD/AVDD to Other 1.8 V Power Supplies: 0.3 V to +0.3 V; (4)Digital Inputs to GND: -0.3 V to DVDD_IO + 0.3 V; (5)Serial Video Inputs to GND: -0.3 V to CVDD1 + 0.3 V; (6)DDR_IO and DDR_VREF to GND: -0.3 V to DVDD_DDR + 0.3 V; (7)5 V Tolerant Digital Inputs to GND: -0.3 V to +5.5 V; (8)1.8 V Analog Inputs to GND: -0.3 V to AVDD3 + 0.3 V; (9)3.3 V Analog Inputs to GND: -0.3 V to AVDD2 + 0.3 V; (10)HDMI Digital Outputs to GND: -0.3 V to AVDD3 + 0.3 V; (11)Digital Outputs Voltage to GND: -0.3 V to DVDD_IO + 0.3 V; (12)Analog Outputs Voltage to GND3: -0.3 V to AVDD2 + 0.3 V; (13)Maximum Junction Temperature (TJ MAX): 125℃; (14)Storage Temperature Range: -65℃ to+150℃; (15)Infrared Reflow Soldering (20 sec): 260℃.
Features
adv8003kbcz-8 features: (1)Full 12-bit, 4:4:4 YUV internal processing; (2)Motion adaptive de-interlacing with ultralow angle interpolation; (3)Multiple video processing paths; (4)Upscaling to 4k × 2k (ADV8003KBCZ-8x models only); (5)Aspect ratio conversion/panorama scaling; (6)Cadence detection for the recovery of original frames from film-based content; (7)Dual video scalers enable simultaneous output of multiple different resolutions; (8)Sharpness and detail enhancement; (9)Noise reduction to reduce random, mosquito, and block noise; (10)Frame rate converter; (11)Support for up to 3 simultaneous video streams, including picture-in-picture (PiP) support.

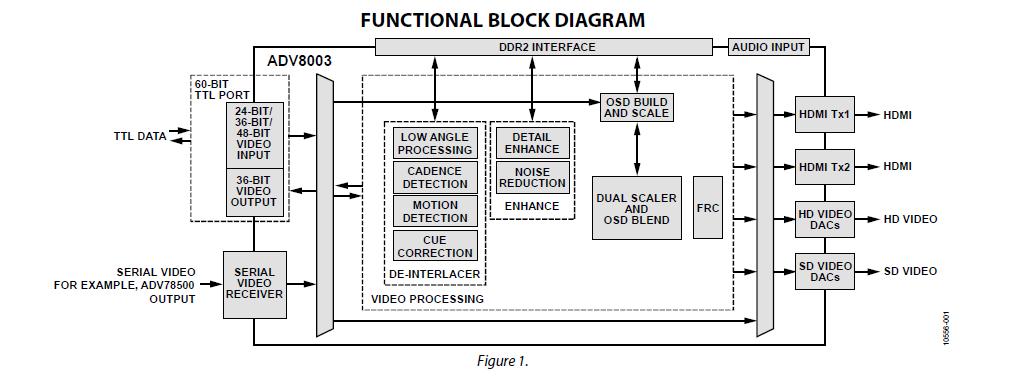

Diagrams
