AQV251

aqv251, 6DIP, National Semiconductor, 50 mA, 5 V, 360 mW, Solid state relay for PCB installation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: AQV251

Brand:: National Semiconductor - NS | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:AQV251
US $2.30 - 2.50
Quantity:

piece

Product Summary

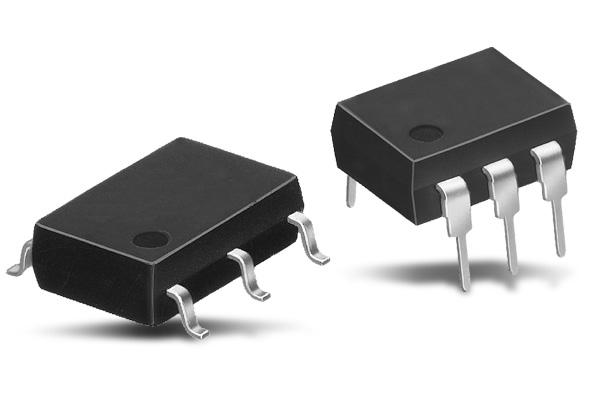

The aqv251 is a Solid state relay for PCB installation.

Parametrics

aqv251 absolute maximum ratings: (1)LED forward current IF: 50 mA; (2)LED reverse voltage VR: 5 V; (3)Peak forward current IFP: 1 A f = 100 Hz, Duty factor +0.1%; (4)Power dissipation Pin: 75 mW; (5)Load voltage (peak AC) VL: 40 V; (6)Peak load current Ipeak: 1.8 A; (7)Power dissipation Pout: 360 mW; (8)Total power dissipation PT: 410 mW; (9)I/O isolation voltage Viso: 1,500 V AC 5,000 V AC; (10)Temperature limits Operating Topr: –40℃ to +85℃; (11)Temperature limits Storage Tstg: –40℃ to +100℃.

Features

aqv251 features: (1)Highly sensitive and low on resistance; (2)Controls various types of loads such as relays, motors, lamps and solenoids; (3)Optical coupling for extremely high isolation 5,000 Vrms I/O isolation available; (4)Low-level off state leakage current; (5)Eliminates the need for a power supply to drive the power MOSFET; (6)Low thermal electromotive force (Approx. 1μV).
